Header PTFE Composite Diaphragm

Diaphragms PTFE Composite Diaphragm

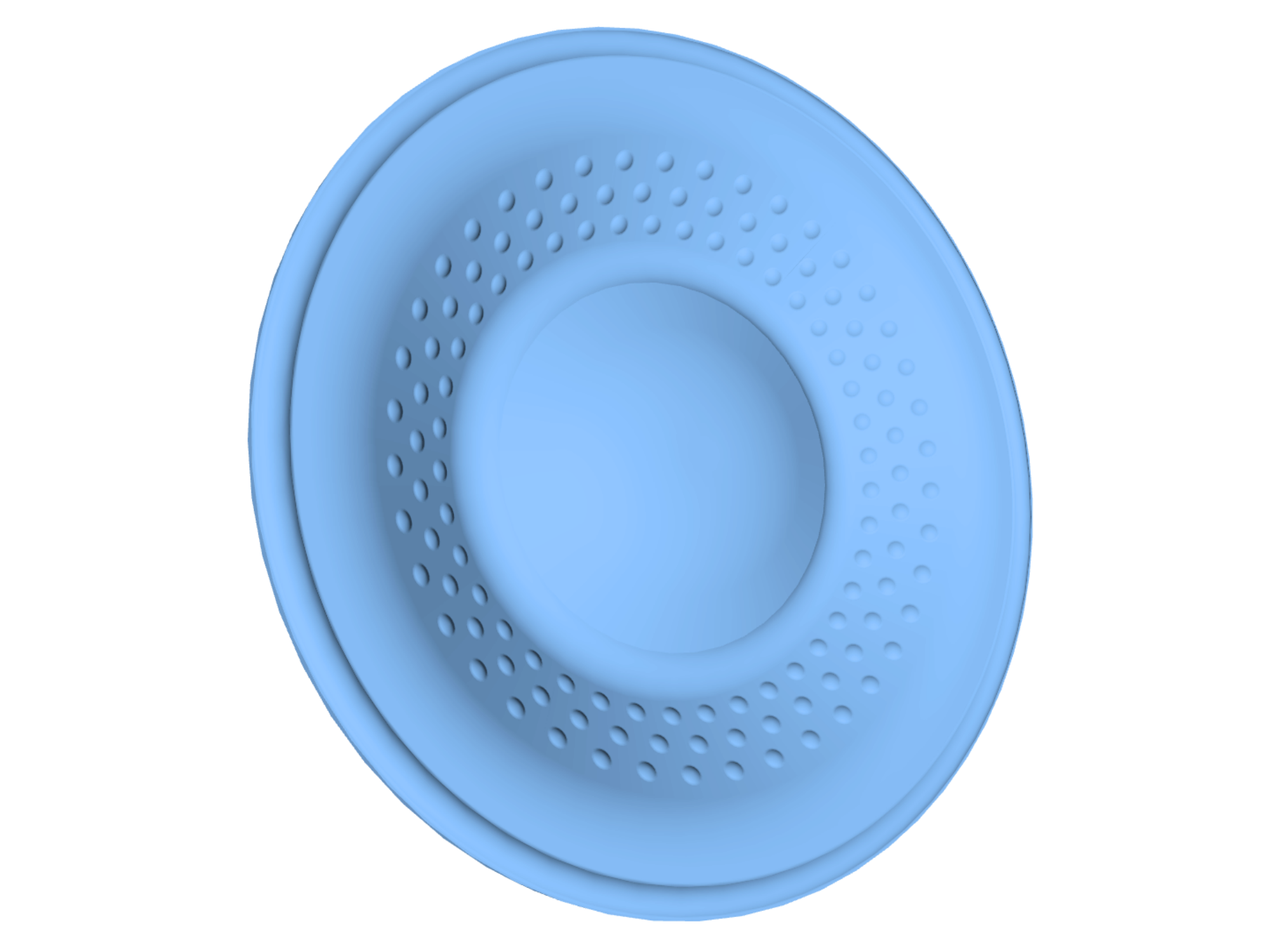

PTFE Composite Diaphragms are used everywhere where toxic and chemically aggressive agents are conveyed. Through the patented PTFE Diaphragm surface structure „SOF“, our diaphragms can reach high load cycles and a high service life even if these are highly loaded. PTFE foil satisfies the FDA requirements and is therefore appropriate for the usage in the food sector.
PTFE composite diaphragm

PTFE Composite Diaphragm

Elastic, movable partitions, high long life performance ...
PTFE Composite Diaphragm
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use pump technology: chemical and food industries

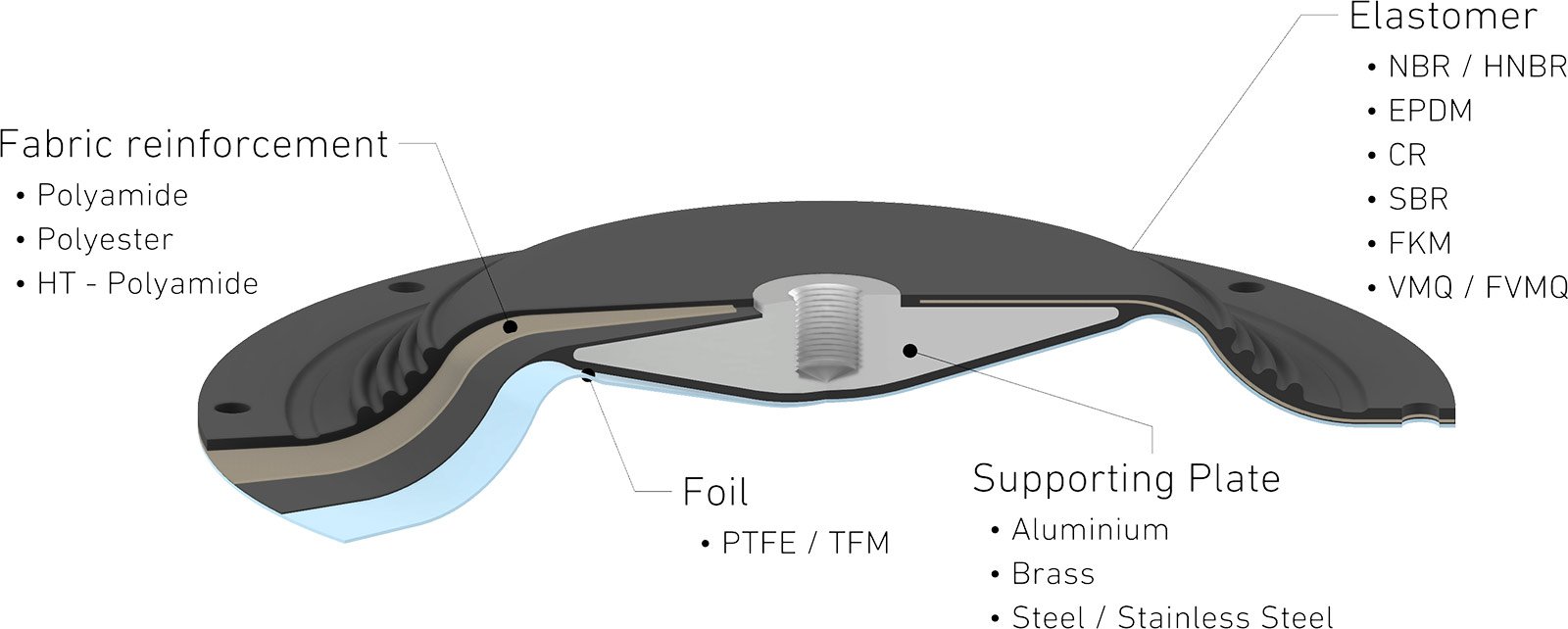

Materials elastomers; fabric reinforcement; metal; PTFE
Technical values
Materials: elastomer, fabric, metal
Pressure: up to 0,07 MPa
Temperature: -50°C / +120°C (material dependent)
Speed: application dependent
