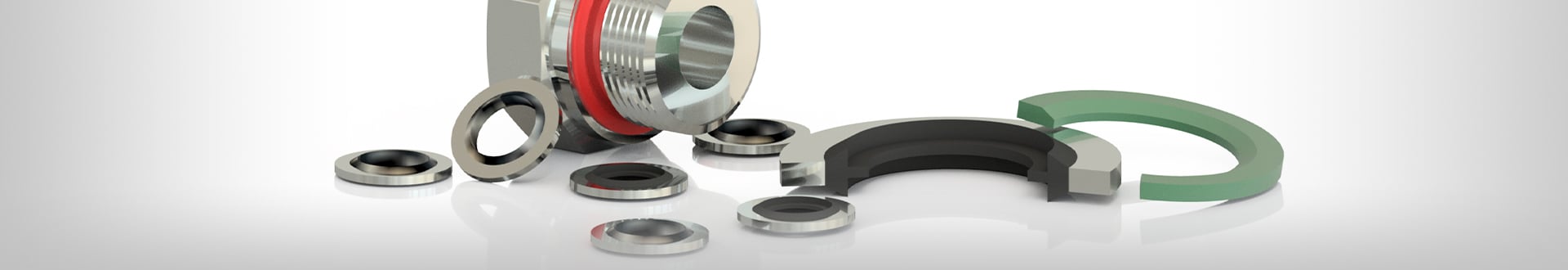

Static Seals U-ring
Elastomeric gaskets to seal connecting elements and screw-in spigots. Applications with a mere elastomer or elastomer-metal bonding.
U-ring Type UH
Profile rings according to the DIN EN ISO 1179-2 and DIN EN ISO 9974-2 (formerly DIN 3869), applicable to screw connections, valves, fittings, flanges and hydraulic applications...
Applications
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
sealant for connection elements
Materials
elastomers
Technical values
Product details
Materials:
Pressure: up to 63 MPa
Temperature: -30°C / +80°C (material dependent)
Speed: -
Pressure: up to 63 MPa
Temperature: -40°C / +130°C (material dependent)
Speed: -
Pressure: up to 63 MPa
Temperature: -20°C / +200°C (material dependent)
Speed: -

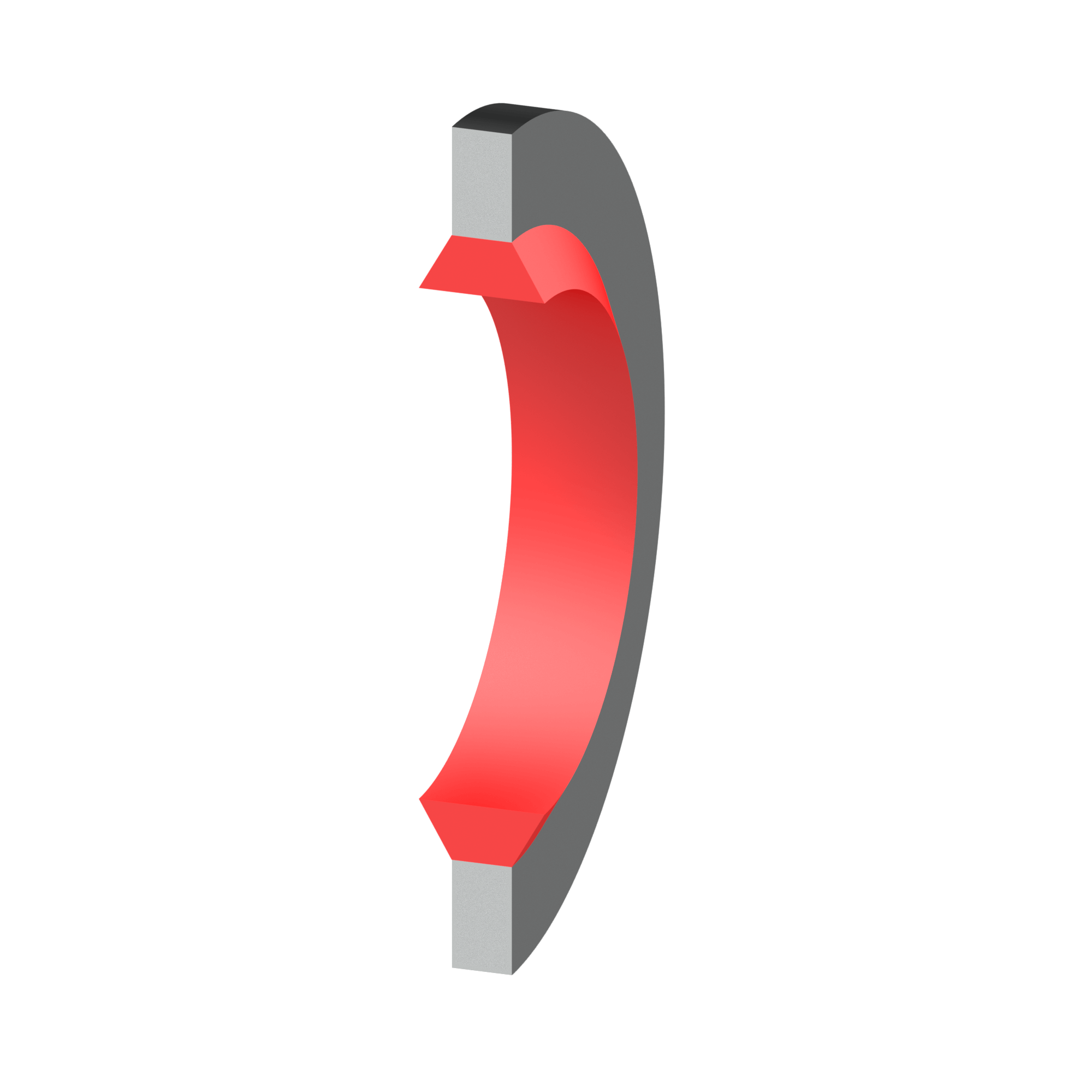

U-ring Type US
Trapezoidal geometry, with a vulcanized elastic sealing embossment ...
Applications
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
sealant for connection elements
Materials
elastomers; metal
Technical values
Product details
Materials:
Pressure: up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40 mm)
up to 25 MPa (installed into a countersink
at > Ø40 mm)
up to 40 MPa (installed into a countersink
at < Ø40 mm)
up to 25 MPa (installed into a countersink
at > Ø40 mm)
Temperature: -30°C / +80°C (material dependent)
Speed: -
Pressure: up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40 mm)
up to 25 MPa (installed into a countersink
at > Ø40 mm)
up to 40 MPa (installed into a countersink
at < Ø40 mm)
up to 25 MPa (installed into a countersink
at > Ø40 mm)
Temperature: -20°C / +200°C (material dependent)
Speed: -
Pressure: up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40 mm)
up to 25 MPa (installed into a countersink
bei > Ø40 mm)
up to 40 MPa (installed into a countersink
at < Ø40 mm)
up to 25 MPa (installed into a countersink
bei > Ø40 mm)
Temperature: -40°C / +130°C (material dependent)
Speed: -

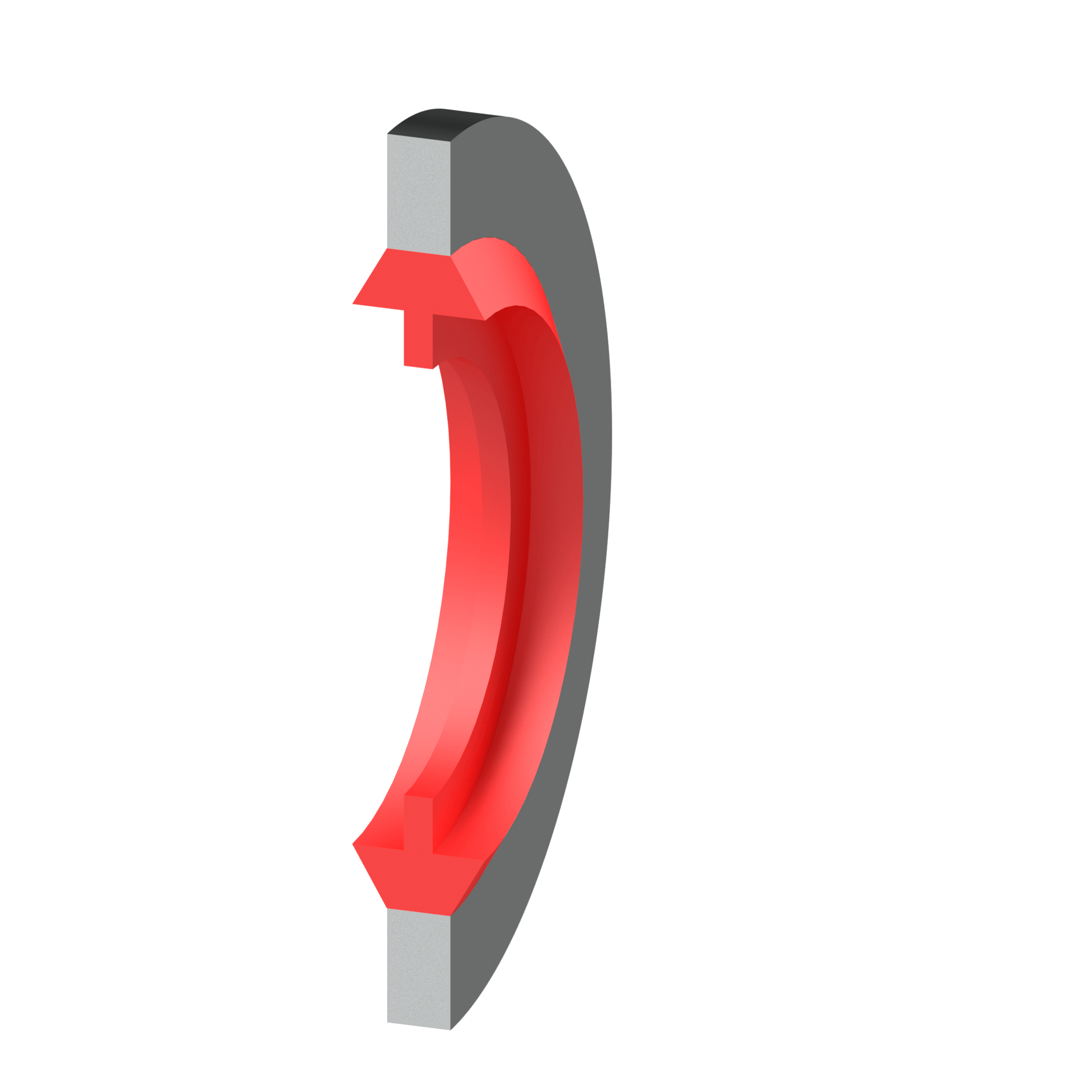

U-ring Type UZ
Trapezoidal geometry, centring with a vulcanized elastic sealing embossment ...
Applications
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
sealant for connection elements
Materials
elastomers; metal
Technical values
Product details
Materials:
Pressure: up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
Temperature: -30°C / +80°C (material dependent)
Speed: -
Pressure: up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
Temperature: -20°C / +200°C (material dependent)
Speed: -
Pressure: up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
Temperature: -40°C / 130°C (material dependent)
Speed: -
