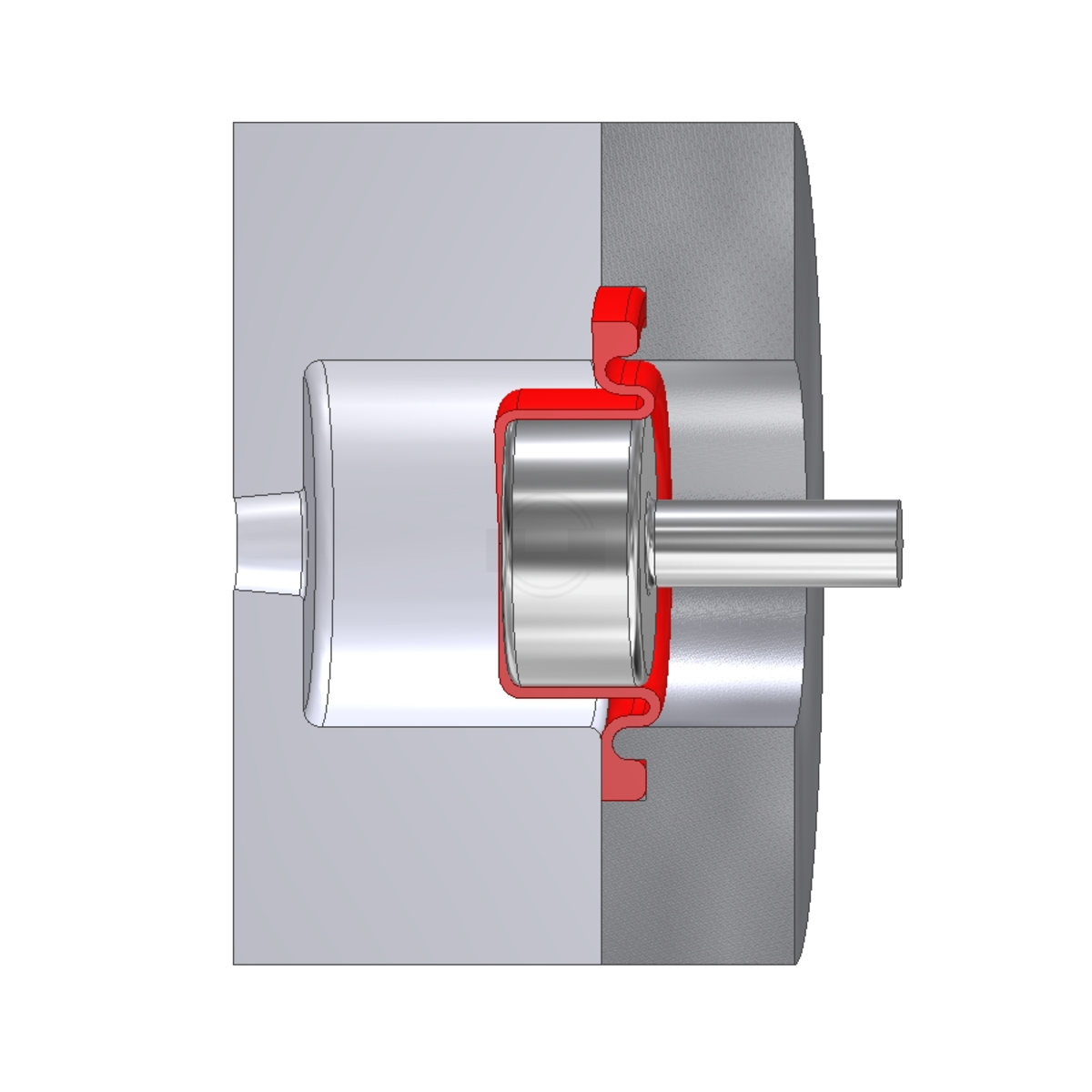

Rolling Diaphragms RMG are highly flexible, thin-walled diaphragms with a fabric reinforcement on the pressure side. They act as flexible movable partitions providing hermetic sealing against two chambers. At the same time, they can perform a stroke movement that is perpendicular to the clamping plane. Due to its thin-walled design and the ratio to the diameter and large height of the diaphragm, the RMG has following advantages:
- a virtually constant inherent resistance,
- large stroke length in relation to the diaphragm height and
- a constant effective area throughout the stroke.

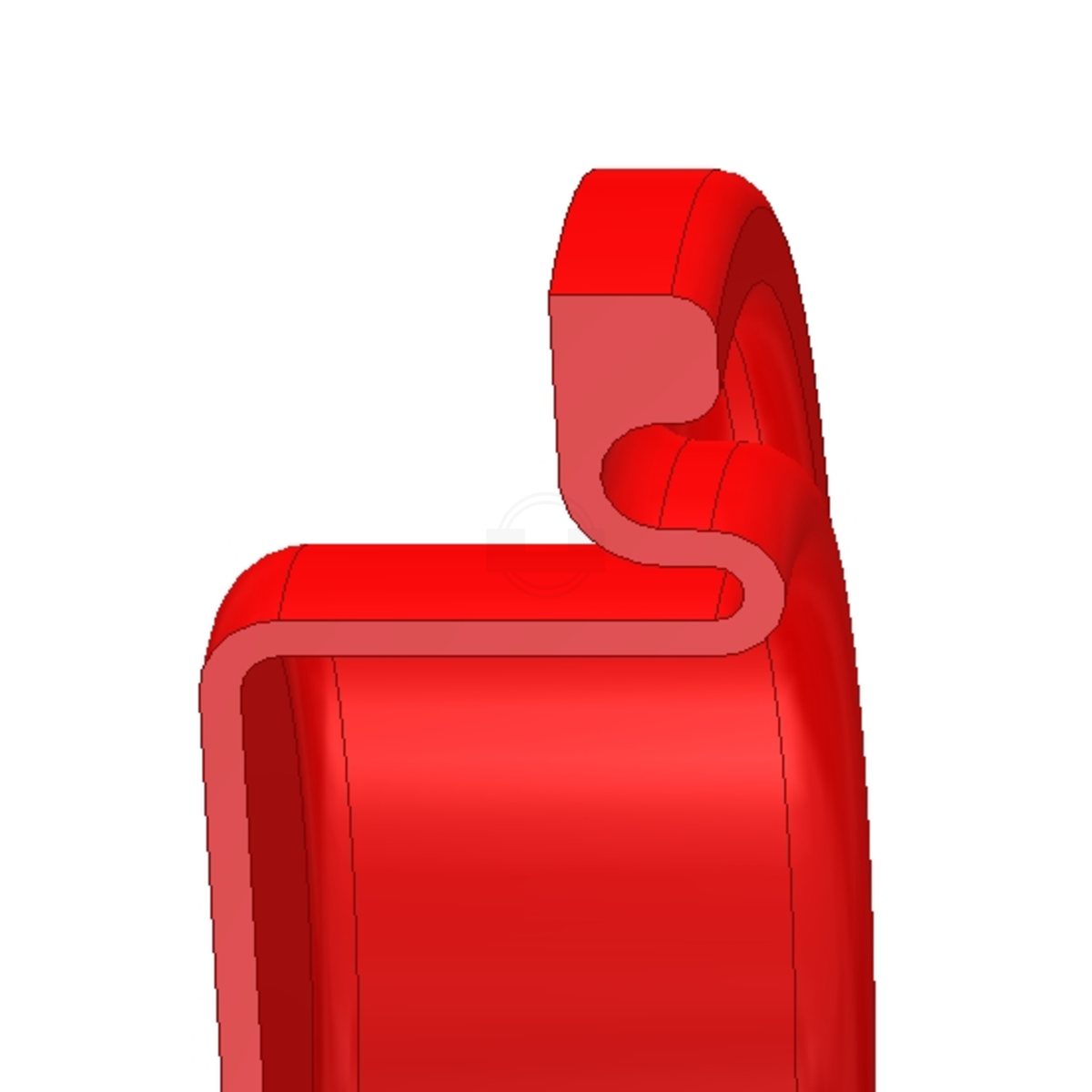

Rolling Diaphragm RMG
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
process measurement and control technology
Materials
elastomers, fabric reinforcement
Technical values
Materials
elastomer
Pressure
up to 0,07 MPa
Temperature
-50°C / +80°C (material dependent)
Speed
application dependent
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
