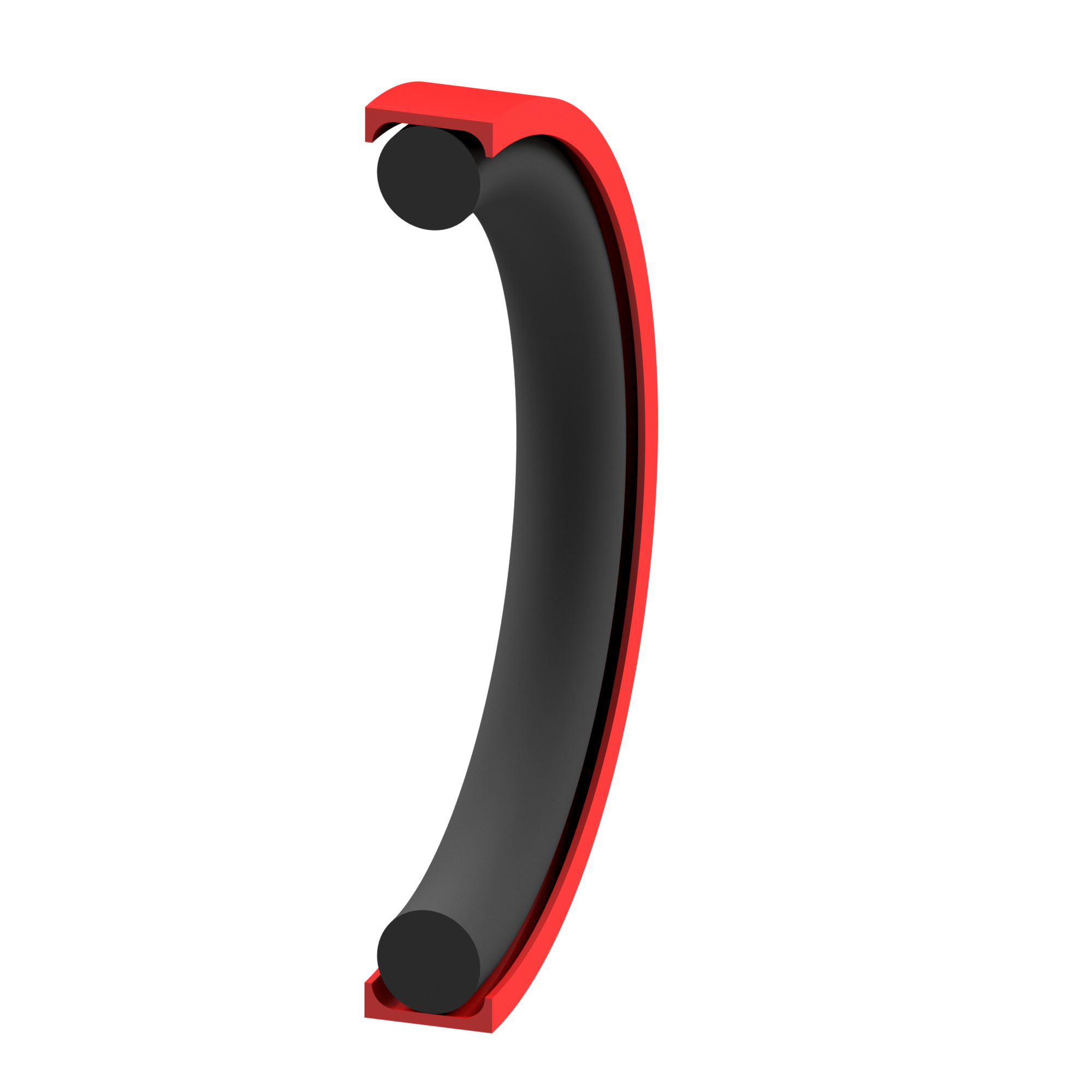

Gleitef KD is a double-acting sealing element which consists of a PTFE seal and an O-ring as preload element. Gleitef KD is an active sealing element and as the system pressure increases, the force on the sealing edge also increases. Gleitef KD requires the smallest installation space and corresponds to the requirements of dynamic O-ring seals and is used for applications with limited space and lower pressures.
This is particularly suitable for hydraulic and pneumatic cylinders, fittings, presses and machine tools. The PTFE compound is filled with a special filler or with carbon graphite to improve the compressive strength. Further materials upon request. O-rings are available in a variety of different materials.
Gleitef KD
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use

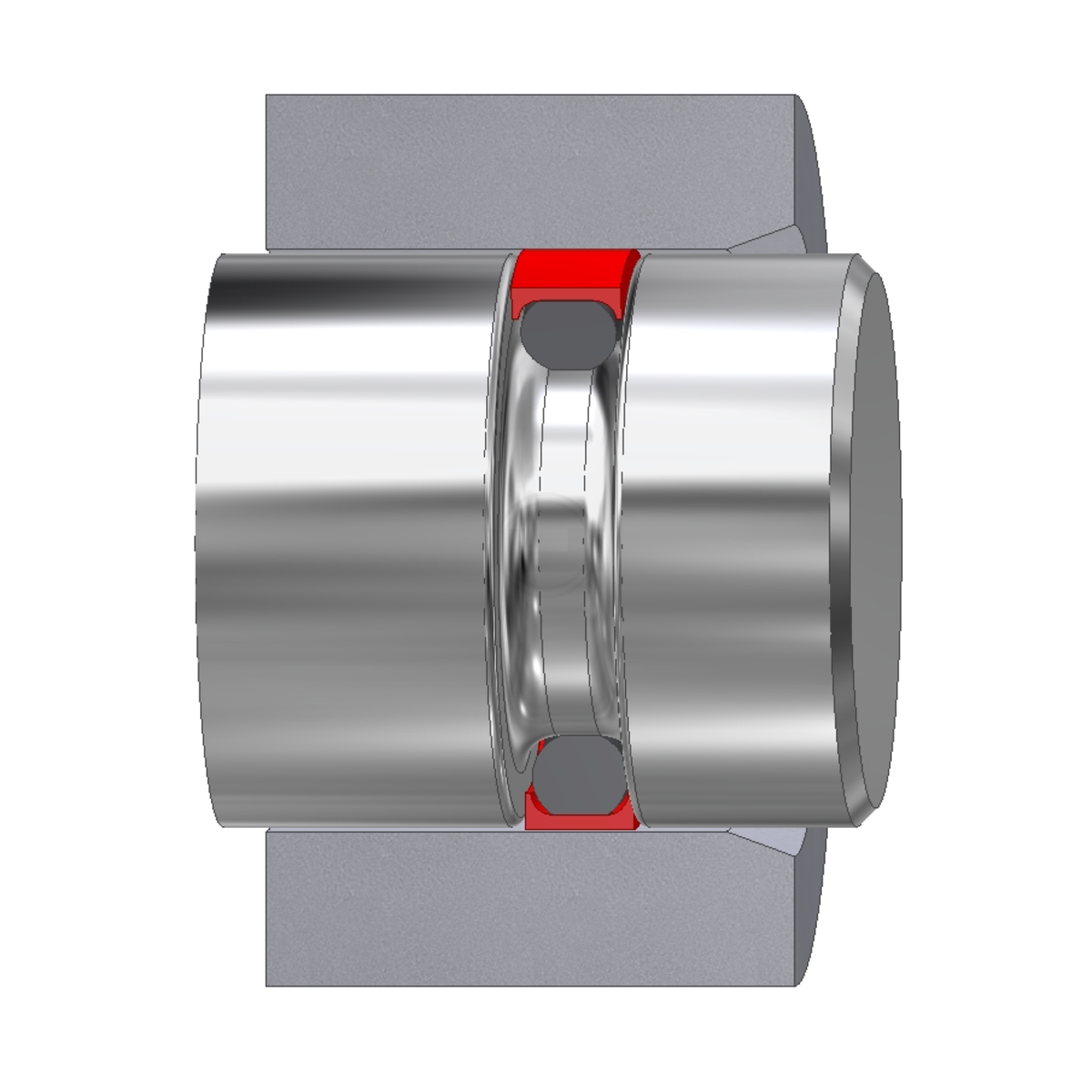

double acting piston sealing for O-ring groove design
Materials
elastomers, PTFE, PTFE with filling material
Technical values
Materials
Pressure
depending on PTFE material and media
up to 25 MPa
up to 25 MPa
Temperature
-30°C / +80°C (material dependent)
Speed
up to 10 m/s
Pressure
depending on PTFE material and media
up to 25 MPa
up to 25 MPa
Temperature
-20°C / +200°C (material dependent)
Speed
up to 10 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
