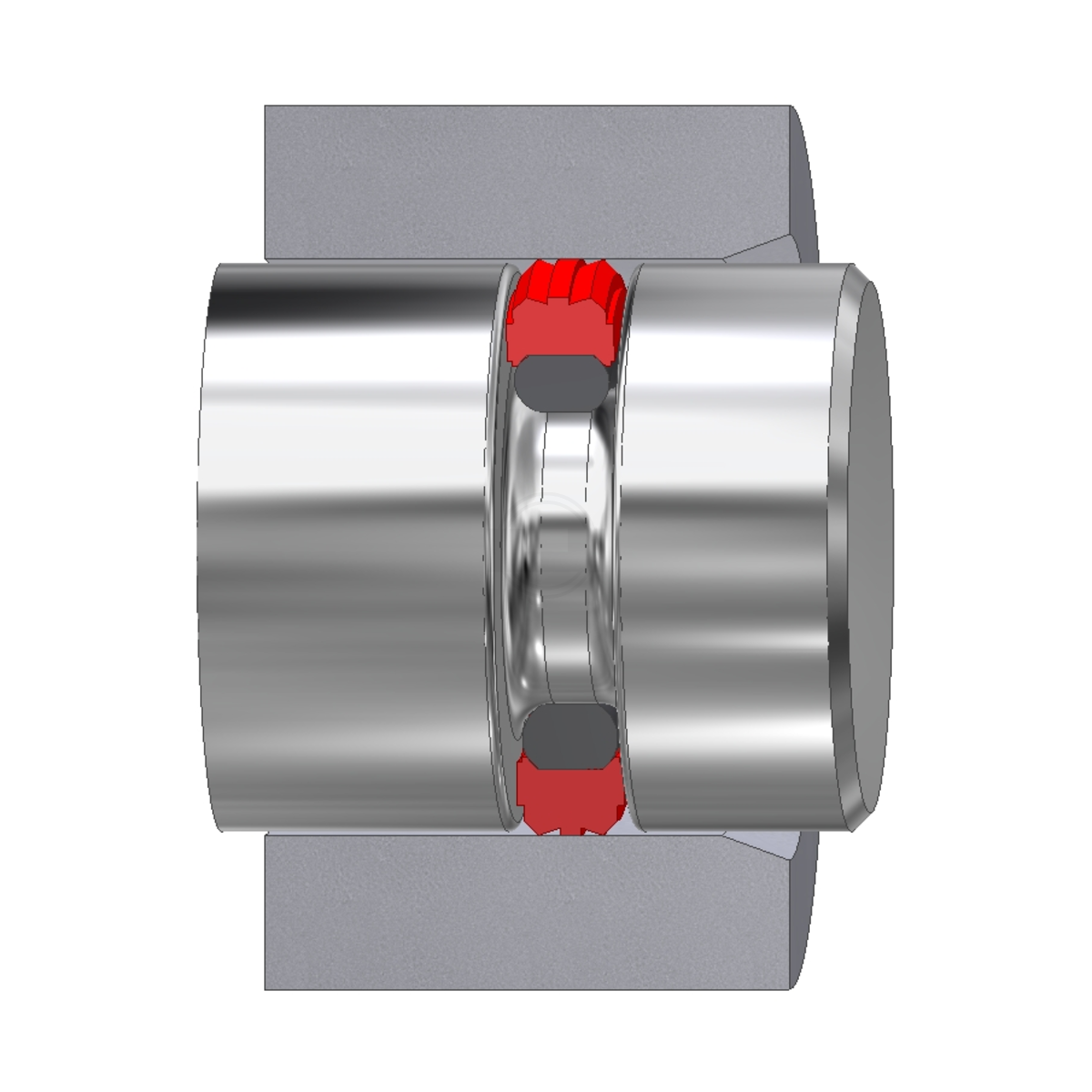

Gleitef KW is a double-acting sealing element which consists of a polyurethane (TPU) seal and an O-ring as preload element. Gleitef KW is an active sealing element and as the system pressure increases, the force on the sealing edges also increases. Due to the special geometry of Gleitef KW, the blow-by effect is prevented during double-sided pressurization.
This is particularly suitable for hydraulic cylinders, agricultural machinery, lifting equipment and machine tools. TPU is characterized by its excellent abrasion resistance and can also be used with insufficient lubrication. The standard TPU mixture is produced with a hardness of 93 to 96 Shore A and is available in different colors. O-rings are available in all standard materials.
Gleitef KW
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
double acting piston seal for hydraulic cylinders, prevents blow-by effect
Materials
elastomers, polyurethane
Technical values
Materials
Pressure
up to 40 MPa
Temperature
-30°C / +80°C (material dependent)
Speed
up to 0,5 m/s
Pressure
up to 40 MPa
Temperature
-20°C / +200°C (material dependent) - TPU max. +100°C
Speed
up to 0,5 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
