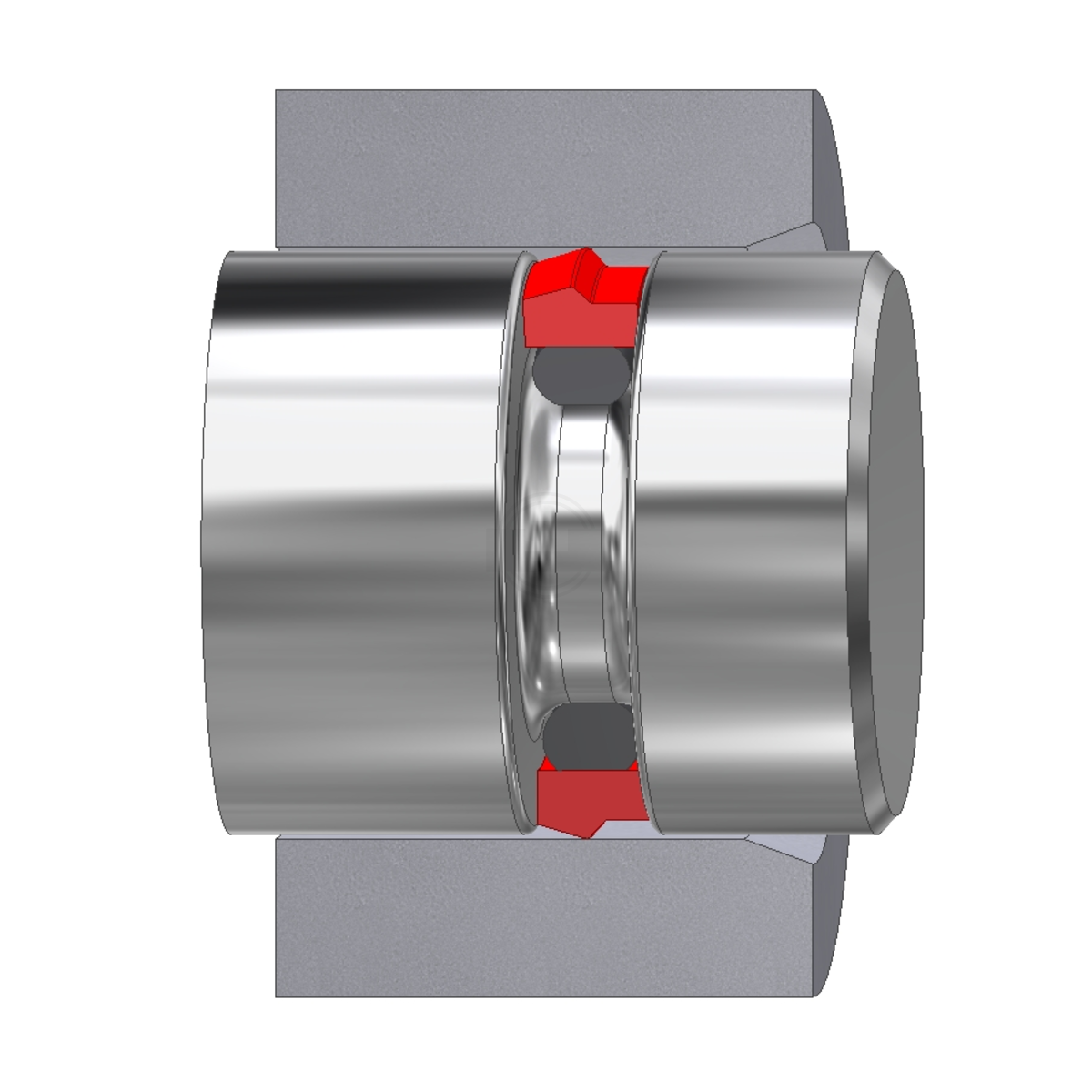

Stuftef KS is a single-acting sealing element which consists of a PTFE seal and an O-ring as preload element. Stuftef KS is an active sealing element and as the system pressure increases, the force on the sealing edge also increases. Due to the special geometry of Stuftef KS makes it possible for an adherent lubricating film on the rod to be conveyed back into the pressure chamber during the return stroke.
This is particularly suitable for hydraulic and pneumatic cylinders, fittings, presses and machine tools. Also suitable for tandem arrangement. The PTFE compound is filled with bronze or carbon graphite to improve the compressive strength. Further materials upon request. O-rings are available in a variety of different materials.
Stuftef KS
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
standard single acting rod seal for hydraulic cylinders
Materials
elastomers, PTFE, PTFE with filling material
Technical values
Materials
Pressure
up to 40 MPa
Temperature
-30°C / +80°C (material dependent)
Speed
up to 10 m/s
Pressure
up to 40 MPa
Temperature
-20°C / +200°C (material dependent)
Speed
up to 10 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
