Header Piston seal

Dynamic Seals U-cup

The U-cup is a single acting, active one-piece sealing element made of elastomer or polyurethane.

U-cup N1

One-piece, single acting sealing element made of elastomer or polyurethane, symmetric design ...
U-cup N1
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use hydraulic and pneumatic applications
Materials elastomers, polyurethane
Technical values
Materials:
Pressure: up to 15 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Pressure: up to 40 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Product details

U-cup N2

Single acting one-piece sealing element made of elastomer or polyurethane, symmetric design, low friction values  ...
U-cup N2
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use hydraulic and pneumatic applications
Materials elastomers, polyurethane
Technical values
Materials:
Pressure: up to 15 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Pressure: up to 40 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Product details

U-cup N4

Single acting one-piece sealing element made of elastomer or polyurethane for use with high shear forces ...
U-cup N4
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use hydraulic and pneumatic applications with high shear forces
Materials elastomers; polyurethane
Technical values
Materials:
Pressure: up to 40 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Pressure: up to 15 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Product details

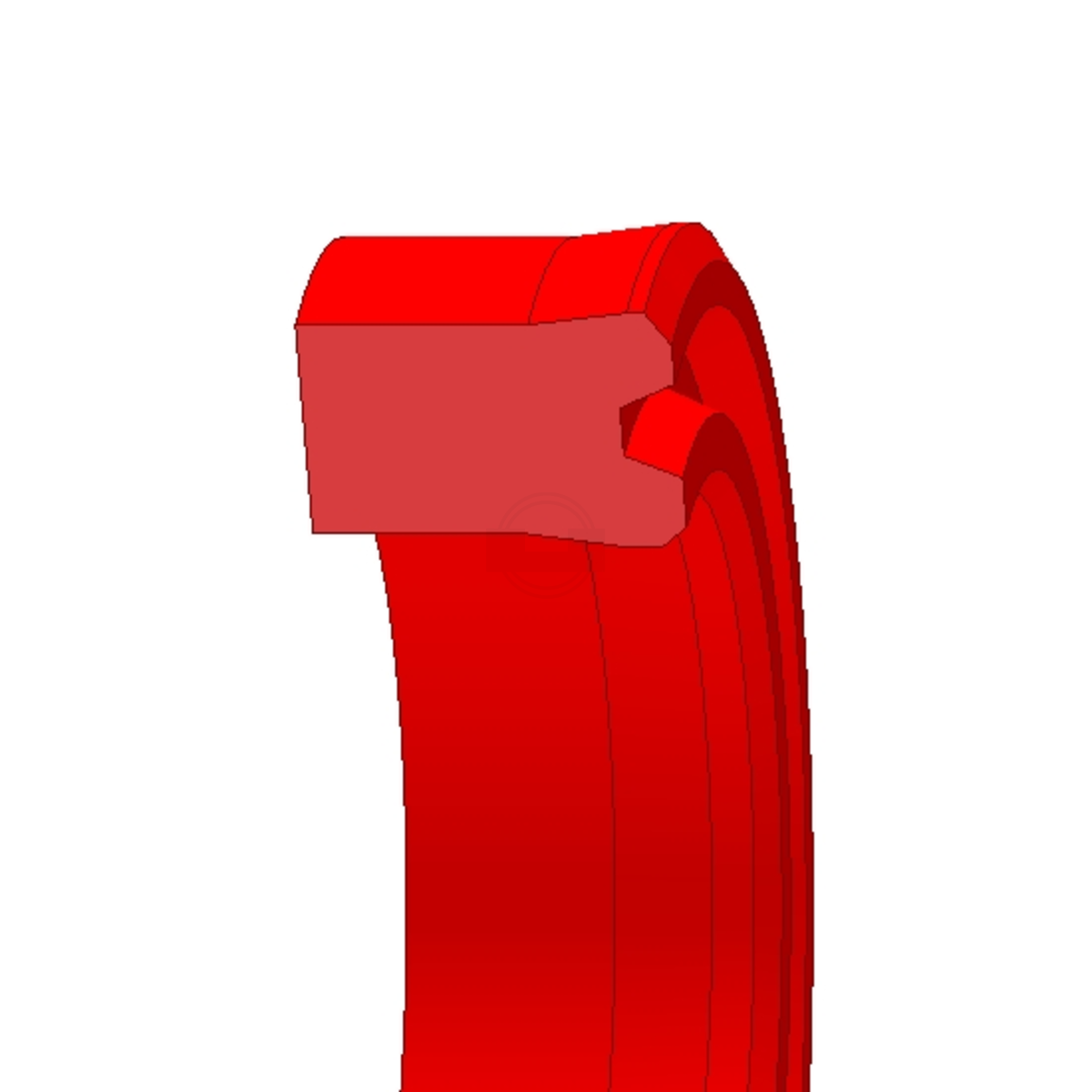

U-cup N6

Single acting one-piece sealing element made of polyurethane, high pressure peaks ...
U-cup N6
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use predominantly for hydraulic applications
Materials Polyurethane
Technical values
Materials: TPU
Pressure: up to 40 MPa
Temperature: -30°C / +100°C (material dependent)
Speed: up to 0,5 m/s
Product details
