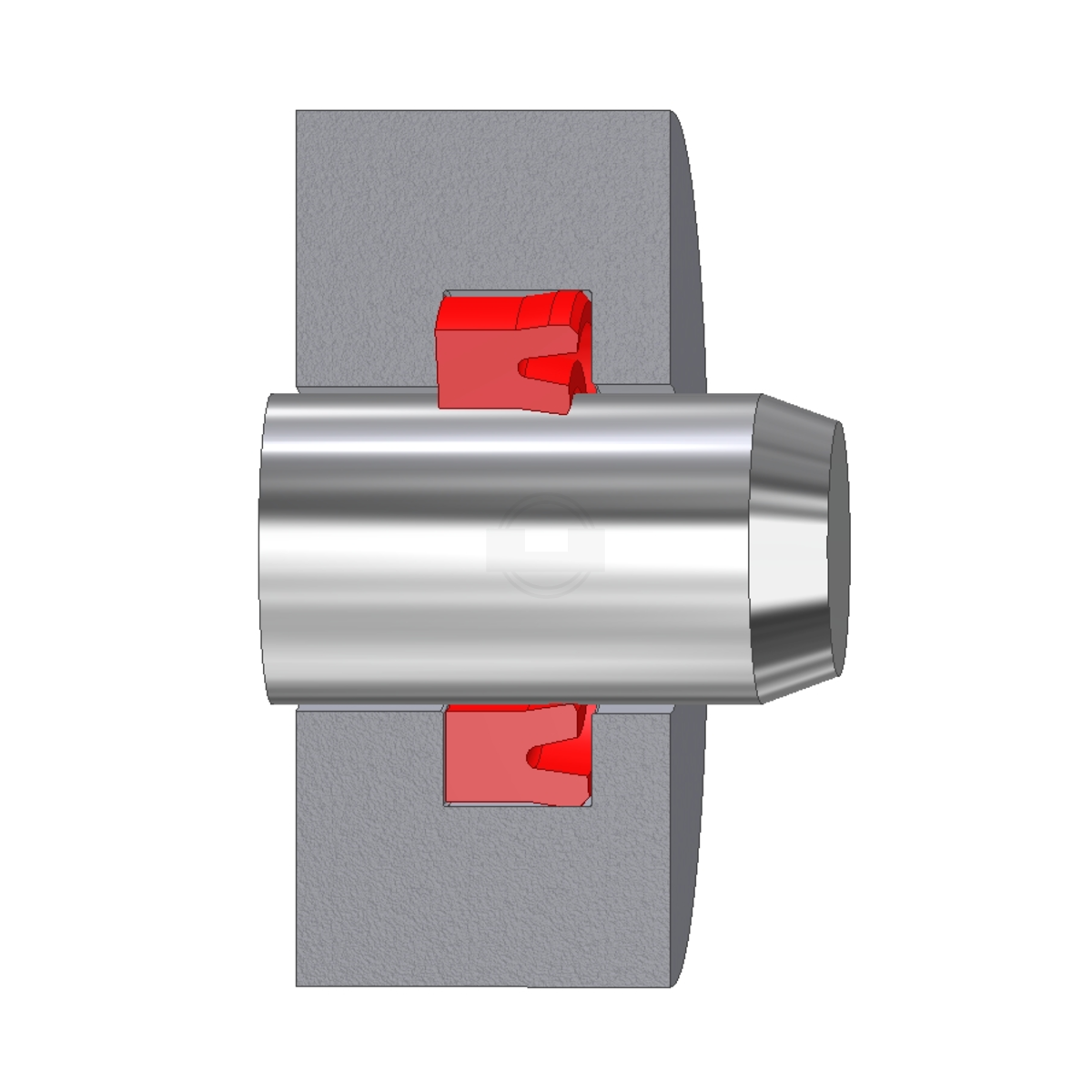

The U-cup N3 is a one-piece, single-acting sealing element and is available in NBR and polyurethane (TPU). U-cup seals are active sealing elements and as the system pressure increases, the force on the sealing lips also increases.
The U-cup N3 is particularly suitable for hydraulic and pneumatic applications and capable of absorbing high shear forces. NBR U-cup seals are used as primary seals for system pressures up to 15 MPa. U-cup seals made of TPU are suitable for working pressures up to 40 MPa. TPU makes these seals suitable as primary and secondary seals, due to the excellent abrasion resistance.
The standard TPU compound has a hardness of 93 Shore A. Compounds in a different hardness and/or color are available upon request.
U-cup N3
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
hydraulic and pneumatic applications with high shear forces
Materials
elastomers, polyurethane
Technical values
Materials
Pressure
up to 15 MPa
Temperature
-30°C / +100°C (material dependent)
Speed
up to 0,5 m/s
Pressure
up to 40 MPa
Temperature
-30°C / +100°C (material dependent)
Speed
up to 0,5 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
