Dynamic Seals Scraper A2

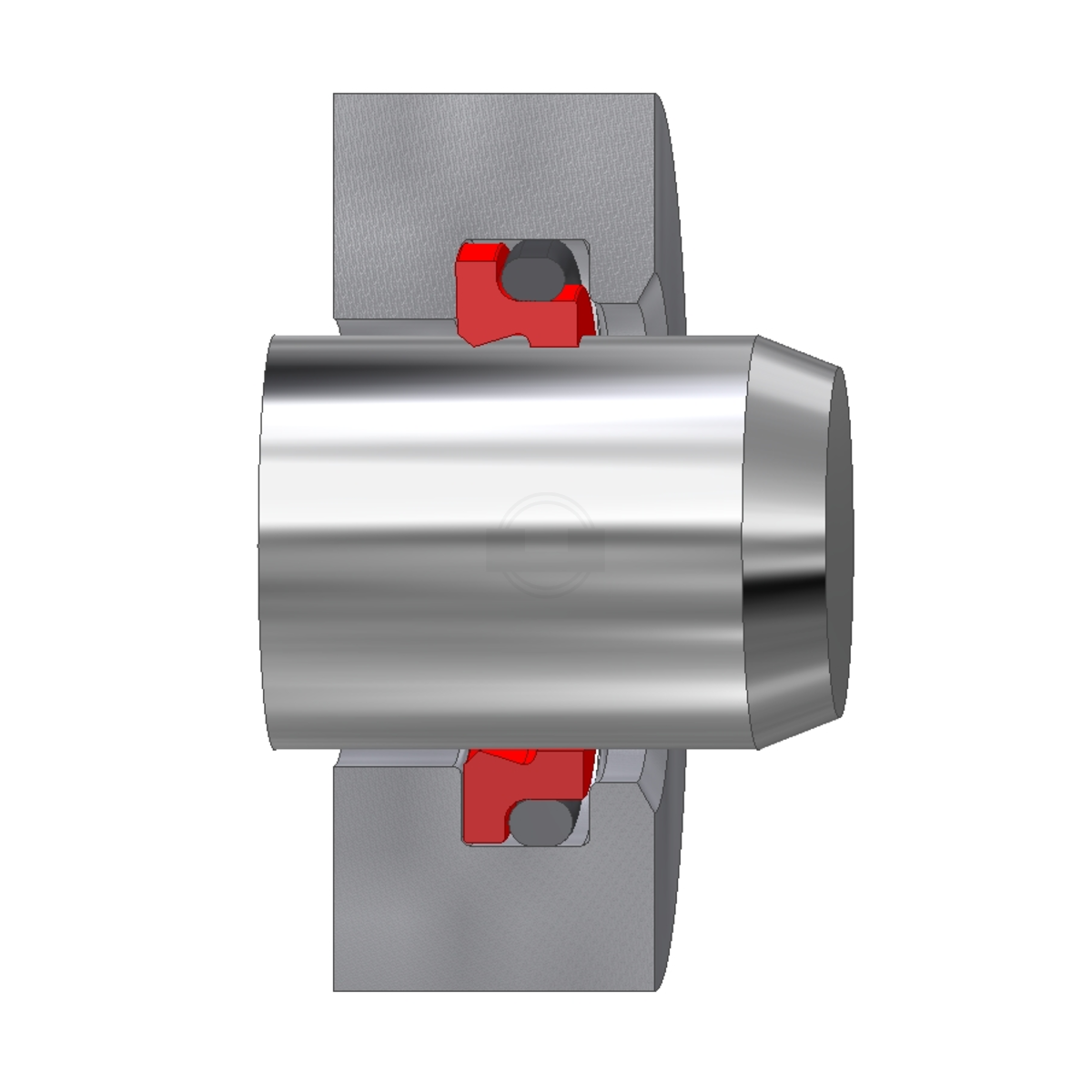

The Scraper A2 consists of a PTFE element with two wiper edges and an O-ring as preload element. The Scraper A2 has excellent sliding properties, runs stick-slip free and has good media resistance. This is ideal for all applications with heavy dirt infestations.

The second sealing lip wipes off the residual oil film from the rod. This is ideal for small installation spaces in comparison to the A3 design. The PTFE compound is filled with bronze or carbon graphite to improve the compressive strength. O-rings are available in a variety of different materials.

Scraper A2

Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use applications for hydraulic and pneumatic cylinders
Materials elastomers; PTFE; PTFE with filling material

Technical values

Materials
Pressure -
Temperature -30°C / +80°C (material dependent)
Speed up to 10 m/s
Pressure -
Temperature -20°C / +200°C (material dependent)
Speed up to 10 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
