Rotary Seals Oil Seal Type RB

The Radial Oil Seal Type RB is a standard type of rotary shaft seals according to the DIN 3760 design type B. This has a metal outer diameter for an increased press fit in the bore. It can be utilized for low viscosity media and gas applications if the surface treatment is machined accordingly. This type has an inserted tension spring.

It is particularly suitable for rotating shafts in housings with applications which either have no pressure or show minimal pressure fluctuations. Standard elastomer materials are NBR and FKM. Further materials are available upon demand.

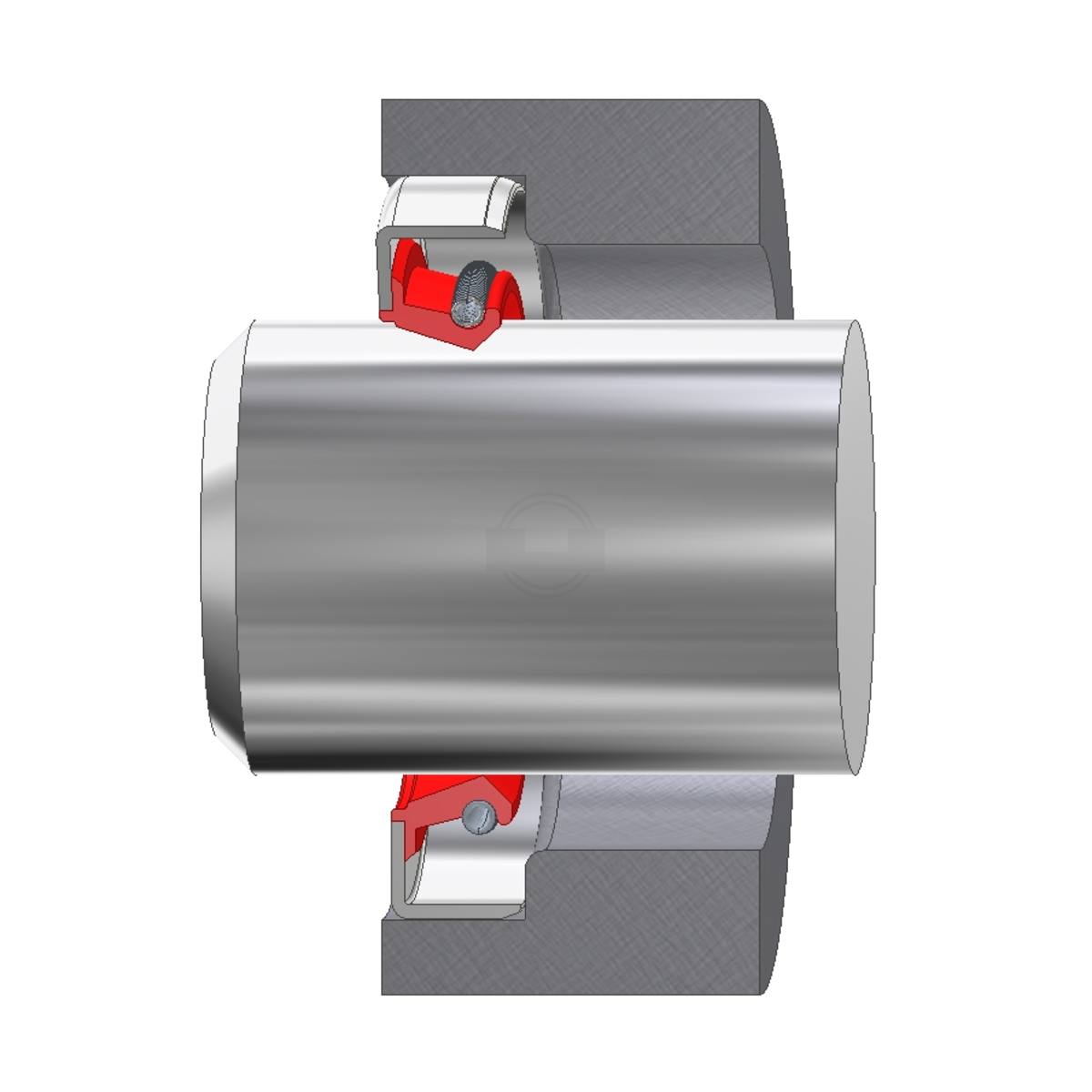

Oil Seal Type RB

Fields of application
single acting
double acting
Main use unpressurized sealing for rotating shafts
Materials elastomers; metal

Technical values

Pressure up to 0,05 MPa
Temperature -30°C / +100°C (material dependent)
Speed depending on material and media
Pressure up to 0,05 MPa
Temperature -20°C / +200°C (material dependent)
Speed depending on material and diameter
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
