Rotary Seals Varitef TR

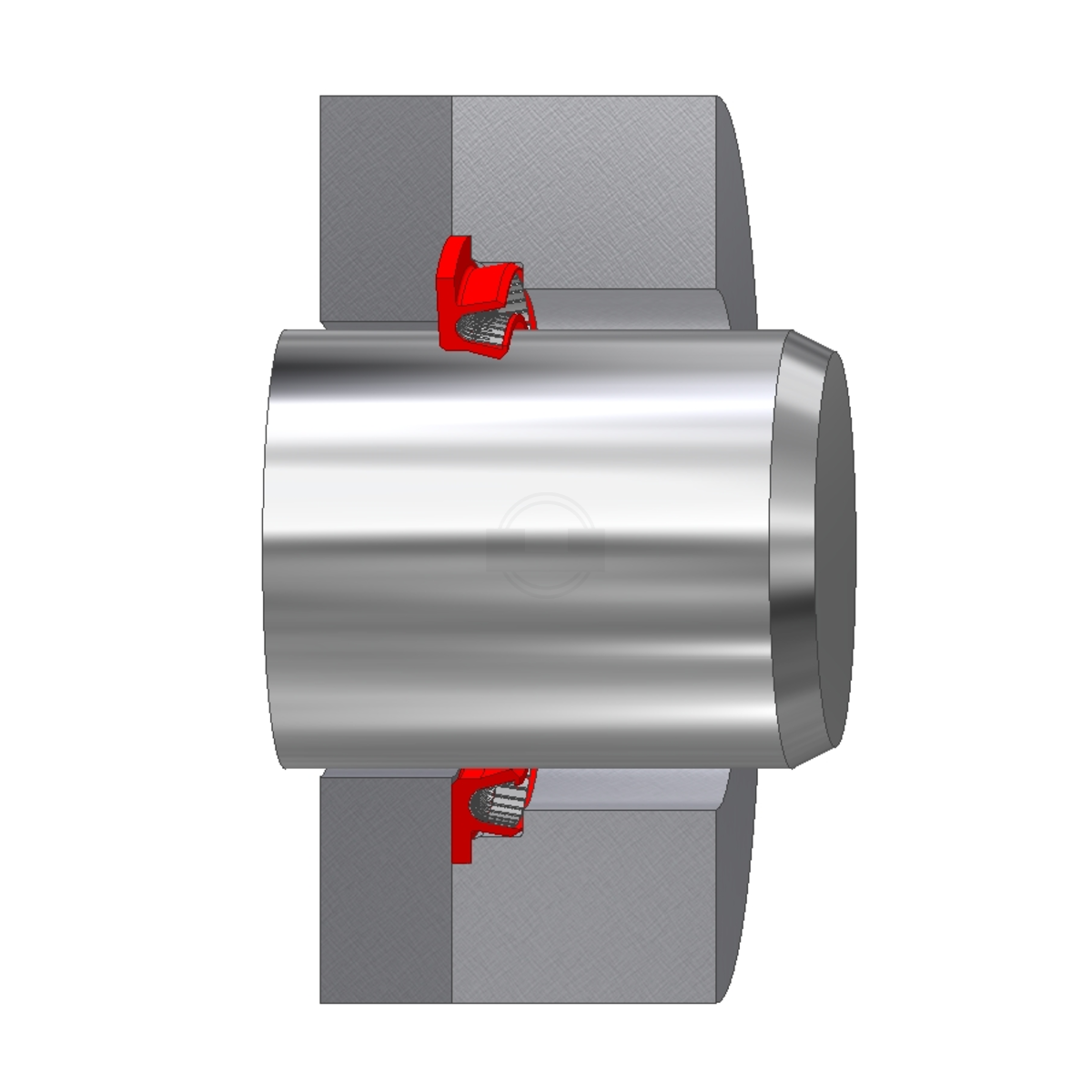

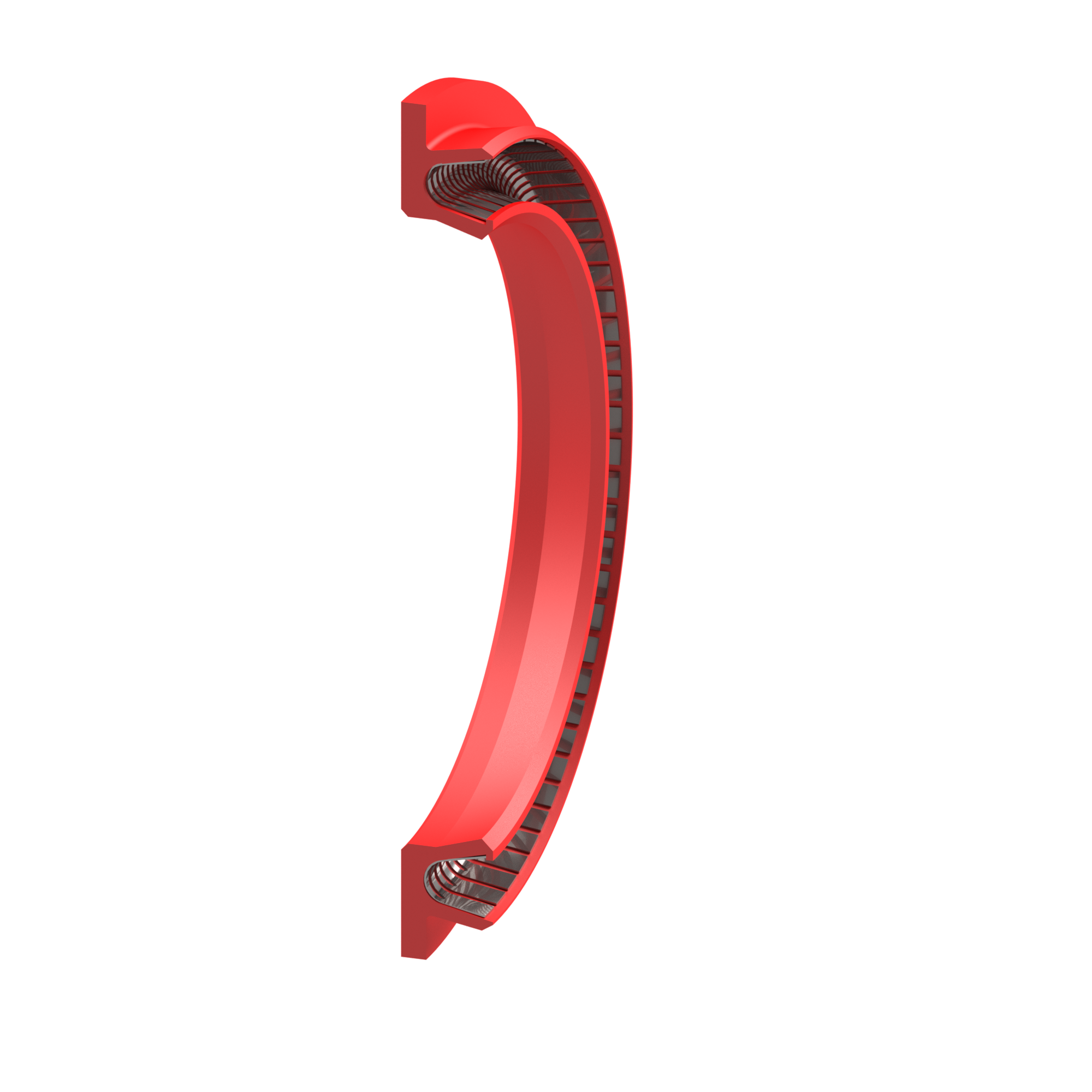

Varitef TR is an internal, single-acting sealing element, which consists of a PTFE seal and a stainless steel spring as preload element. The spring is available in a variety of steel qualities.

Varitef TR is particularly suitable for positioning cylinders with high pressures and relative slow rotation movements. Suitable for applications in the hydraulics and pneumatics, chemistry, food industry and pharmacy, for rotation and swiveling movements as well as back and forth motion.

The PTFE compound is filled with bronze or carbon graphite to improve the compressive strength. Further materials upon request.

Varitef TR

Fields of application
single acting
double acting
Main use Rotary seal (internal sealing) for a high temperature area
Materials metal; PTFE; PTFE with filling material

Technical values

Materials PTFE with stainless steel spring
Pressure up to 15 MPa
Temperature -150°C / +225°C (material dependent)
Speed up to 2 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
