Static Seals Back-up Ring BC – concave slotted

The Back-up Ring BC has a slotted profile with a concave groove. Due to its assembly ease, it is particularly suitable for closed grooves or for all installations.It has a very good O-ring support at very high und pulsating pressures through the concave design.

Back-up Rings are exactly adapted to the groove height and are turned with standard PTFE virgin material. The required groove width increases by the width of the Back-up Rings.

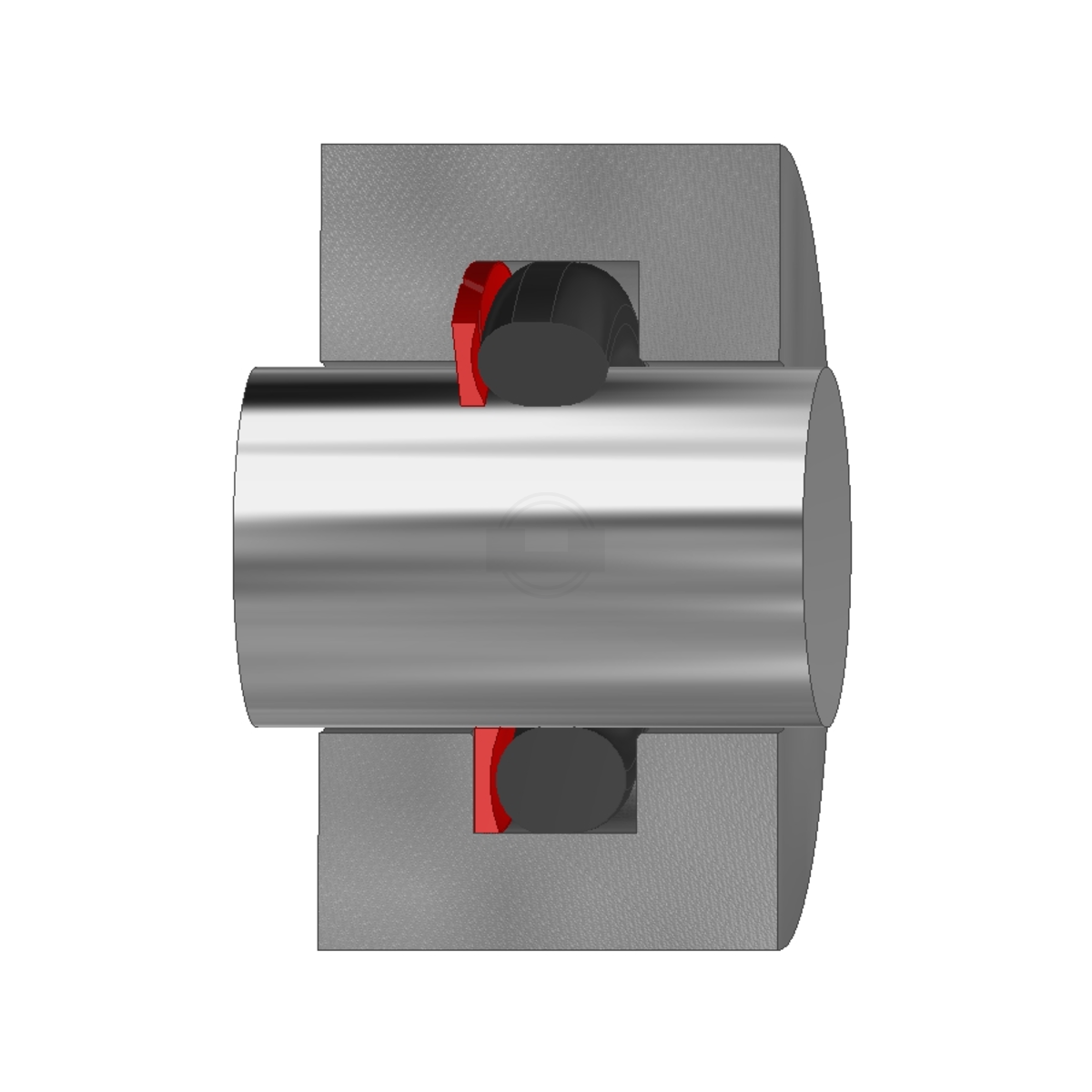

Back-up Ring BC - concave slotted

Fields of application
single acting
double acting
Main use protective element for elastomeric sealants against gap extrusion
Materials PTFE; PTFE with filling material

Technical values

Materials PTFE
Pressure static up to 250 MPa static
linear up to 40 MPa
rotatory up to 15 MPa
Temperature -200°C / +260°C (material dependent)
Speed linear up to 0,5 m/s
rotatory up to 2 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
