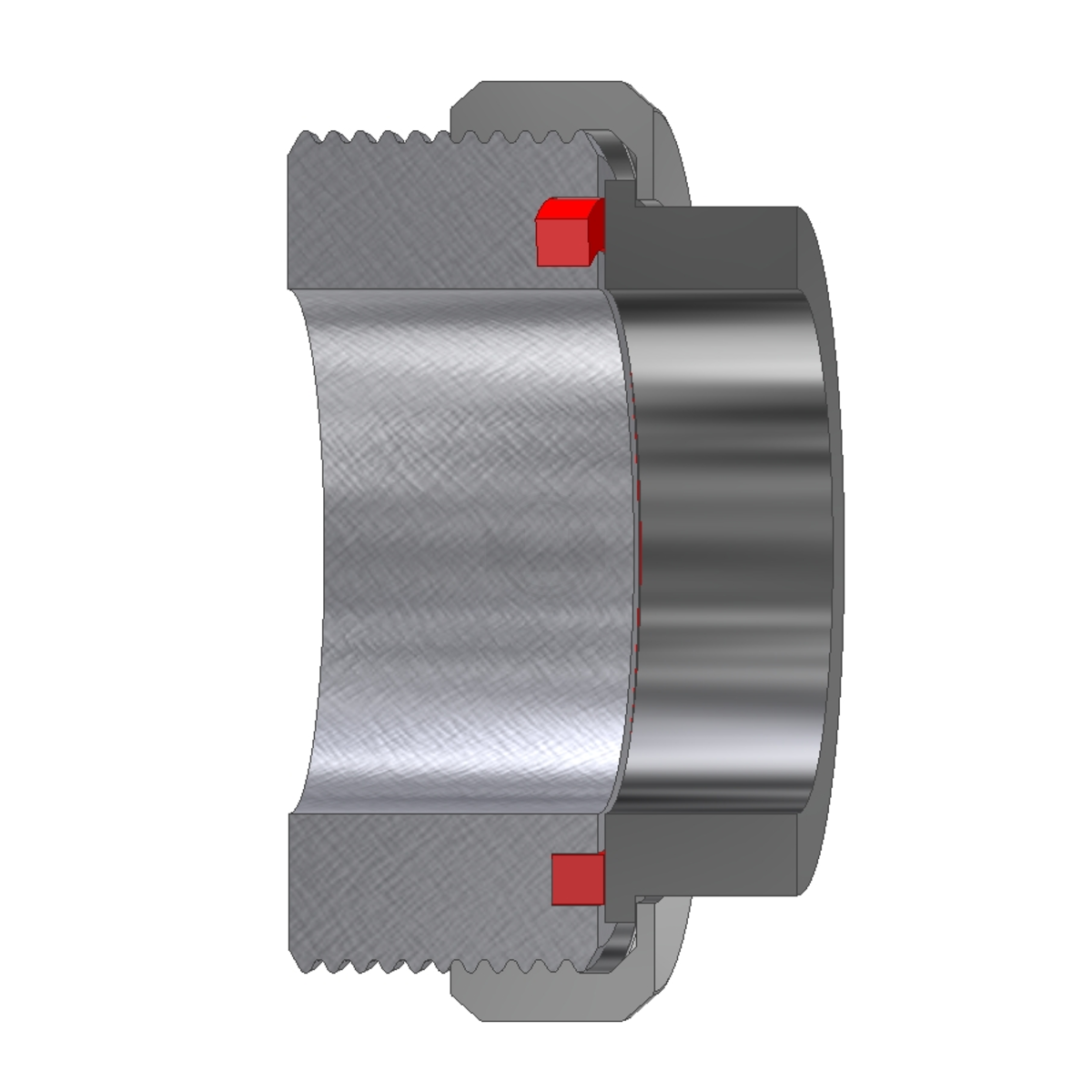

The M-ring type ME is an axial static sealing element for SMS clamping connections and flanges for the food industry. Clamp sealing are available in a variety of common elastomer materials. The most common of these would be NBR, FKM, EPDM and PTFE.
Compounds comply with the Code of Federal Regulations (FDA-Food and Drug Administration) 21 CFR 177.2600 or 21 CFR 177.1550. Further compounds are available upon request i.e. with accordance to BfR recommendation XXI, USP Class VI and 3-A Sanitary Standards.
M-ring Type ME
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
valves for the food industry
Materials
elastomers; PTFE
Technical values
Materials
Pressure
up to 16 MPa
Temperature
-30°C / +80°C (material dependent)
Speed
-
Pressure
up to 16 MPa
Temperature
-20°C / +200°C (material dependent)
Speed
-
Pressure
up to 16 MPa
Temperature
-40°C / +130°C (material dependent)
Speed
-
Pressure
up to 16 MPa
Temperature
-200°C / +260°C (material dependent)
Speed
-
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
