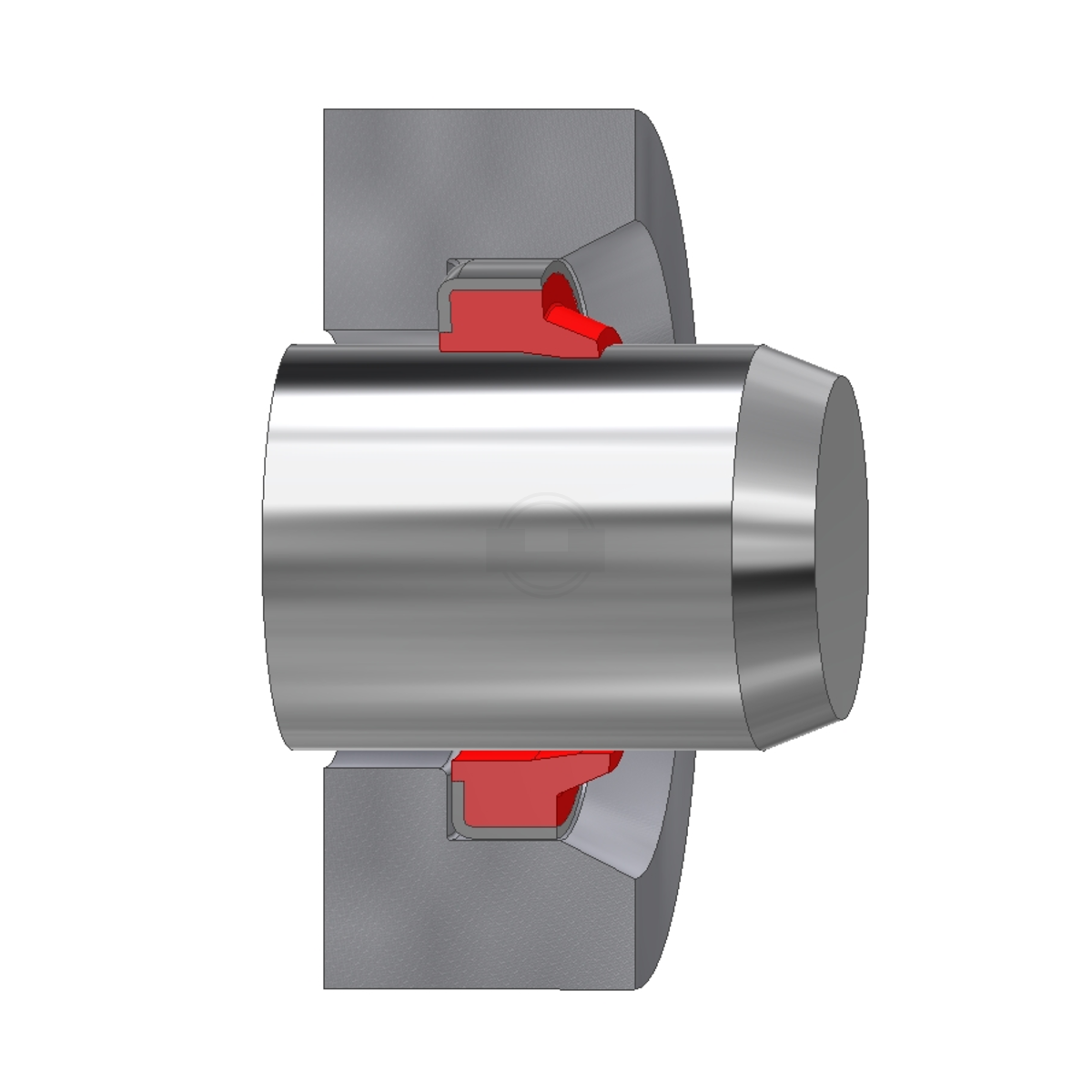

The Scraper A9 is a one-piece wiper with a vulcanized metal supporting ring, and is available in NBR, FKM or polyurethane (TPU).
The Scraper A9 in:
- NBR is suitable for hydraulic and pneumatic applications
- FKM is particularly suitable for applications where a higher chemical resistance is required.
- TPU is for mobile hydraulics with heavy dirt.
Scraper A9
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
applications for hydraulic and pneumatic cylinders
Materials
elastomers, metal, polyurethane
Technical values
Materials
Pressure
-
Temperature
-40°C / +100°C (material dependent)
Speed
1 m/s
Pressure
-
Temperature
-20°C / +200°C (material dependent)
Speed
1 m/s
Pressure
-
Temperature
-40°C / +100°C (material dependent)
Speed
1 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
