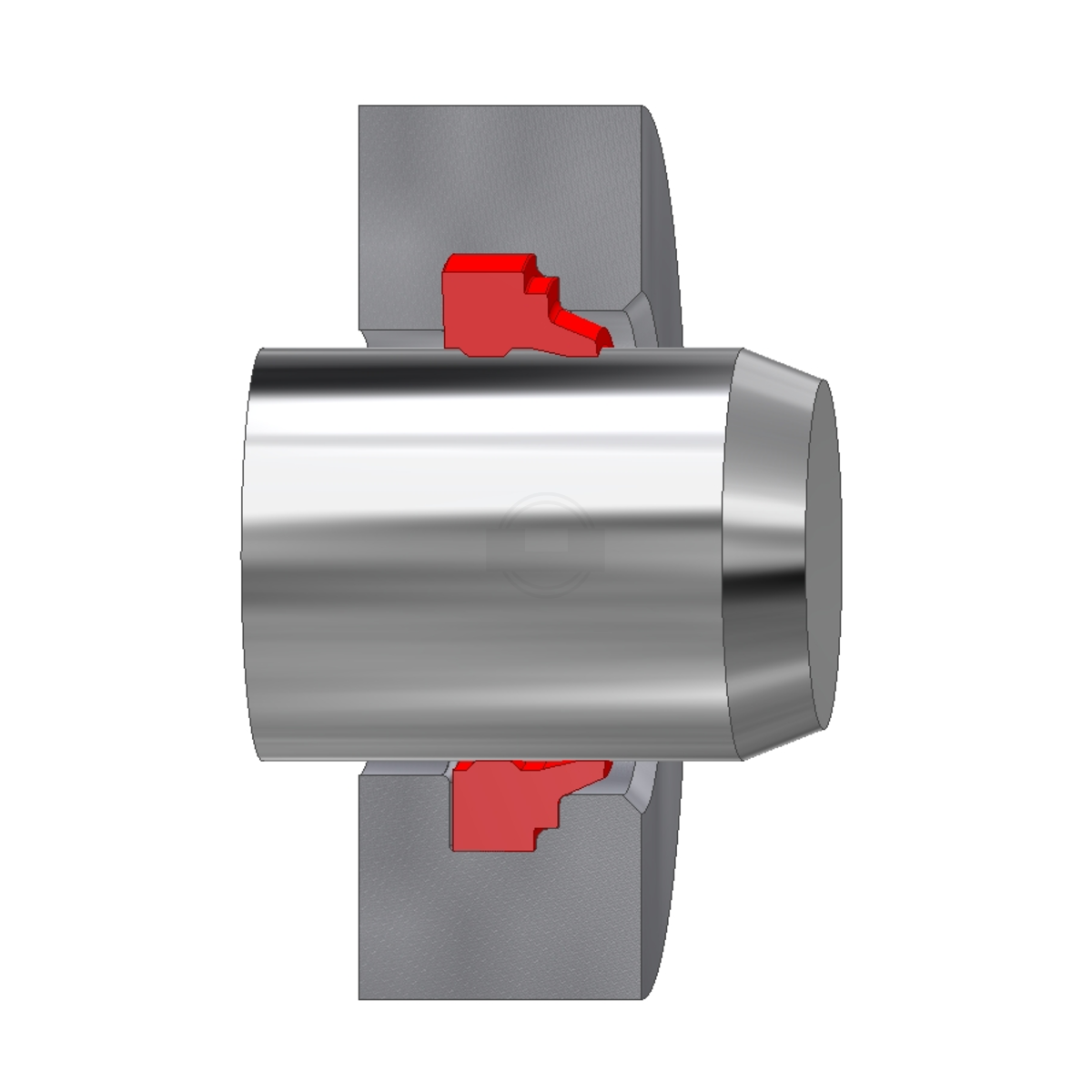

The Scraper A8 is a one-piece wiper and is available in NBR, FKM or polyurethane (TPU).
The Scraper A8 in:
- NBR is suitable for hydraulic and pneumatic applications
- FKM is particularly suitable for applications where a higher chemical resistance is required
- TPU is particularly suitable for mobile hydraulic with heavy dirt requirements due to its excellent abrasion resistance.
Scraper A8
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
applications for hydraulic and pneumatic cylinders
Materials
elastomers, polyurethane
Technical values
Materials
Pressure
-
Temperature
-40°C / +100°C (material dependent)
Speed
up to 1 m/s
Pressure
-
Temperature
-20°C / +200°C (material dependent)
Speed
up to 1 m/s
Pressure
-
Temperature
-40°C / +100°C (material dependent)
Speed
up to 1 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
