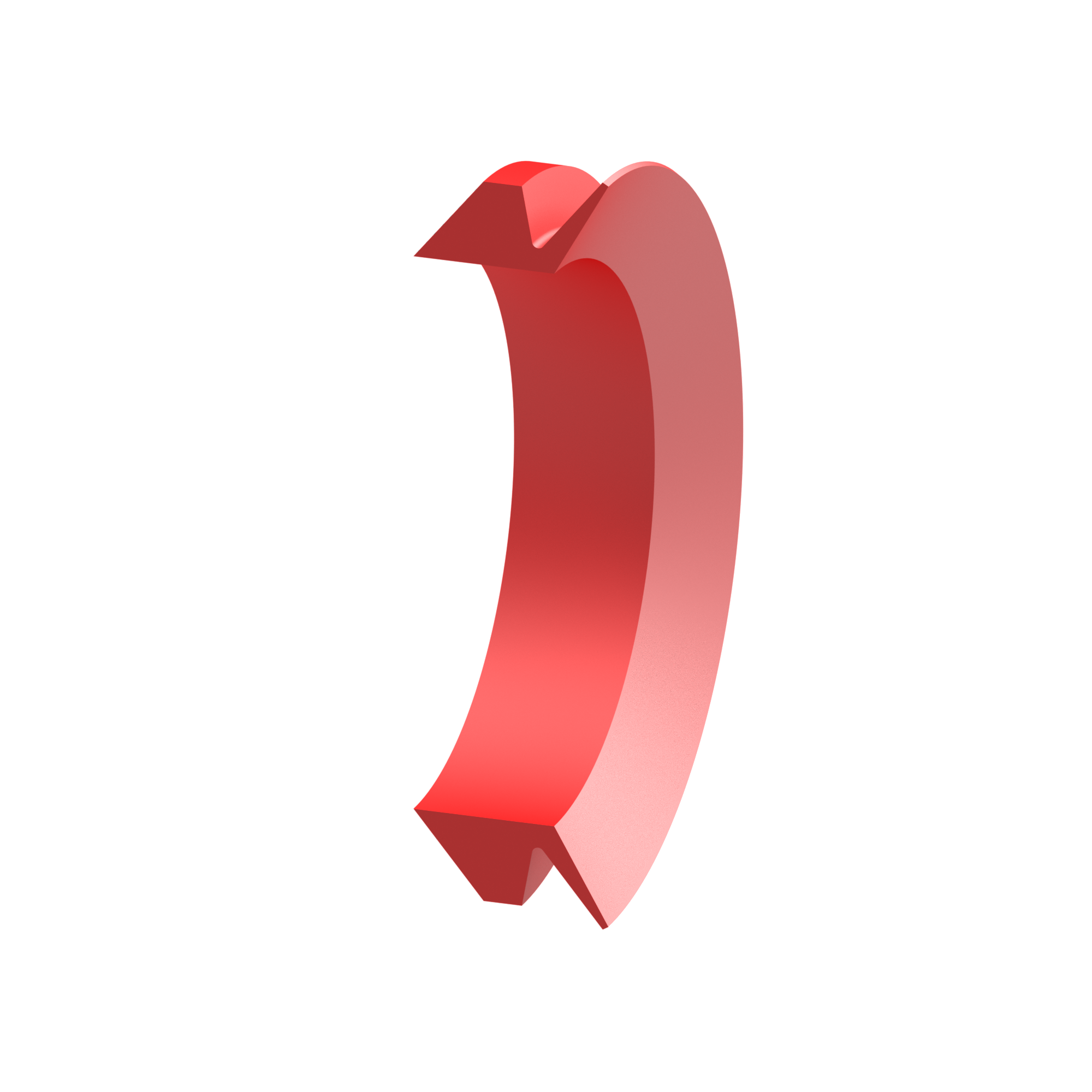

Rotary Seals V-ring VS
The V-ring VS is an axial sealing, single-acting sealant for non-pressurized shaft and bearing sealing applications. In contrast to radial oil shaft seals, V-rings seal against the vertical arranged front surface. When mounting, the V-ring VS is to be expanded on the inner diameter and ensures a tight fit on the shaft.
Due to the broadly built design of the V-ring VS, it ensures a much tighter fit on the shaft and is particularly suitable for high speed rotations. Compared to the V-ring VA, the V-ring VS requires a 50% extended installation width. Standard elastomer materials are NBR with ozone resistance and FKM. Further materials are available upon demand.
V-ring VS

Technical values
up to 12 m/s with axial fixation
up to 12 m/s with axial fixation
Technology - General sealing topics, special constructions
