Flat Gaskets parts are individually designed sealing elements, that can be specially manufactured according to customer specifications. A large variety of materials are available. Flat Gaskets can be produced in different techniques:
- punching
- waterjet cutting
- cut from tube
- production per injection moulding or compression method

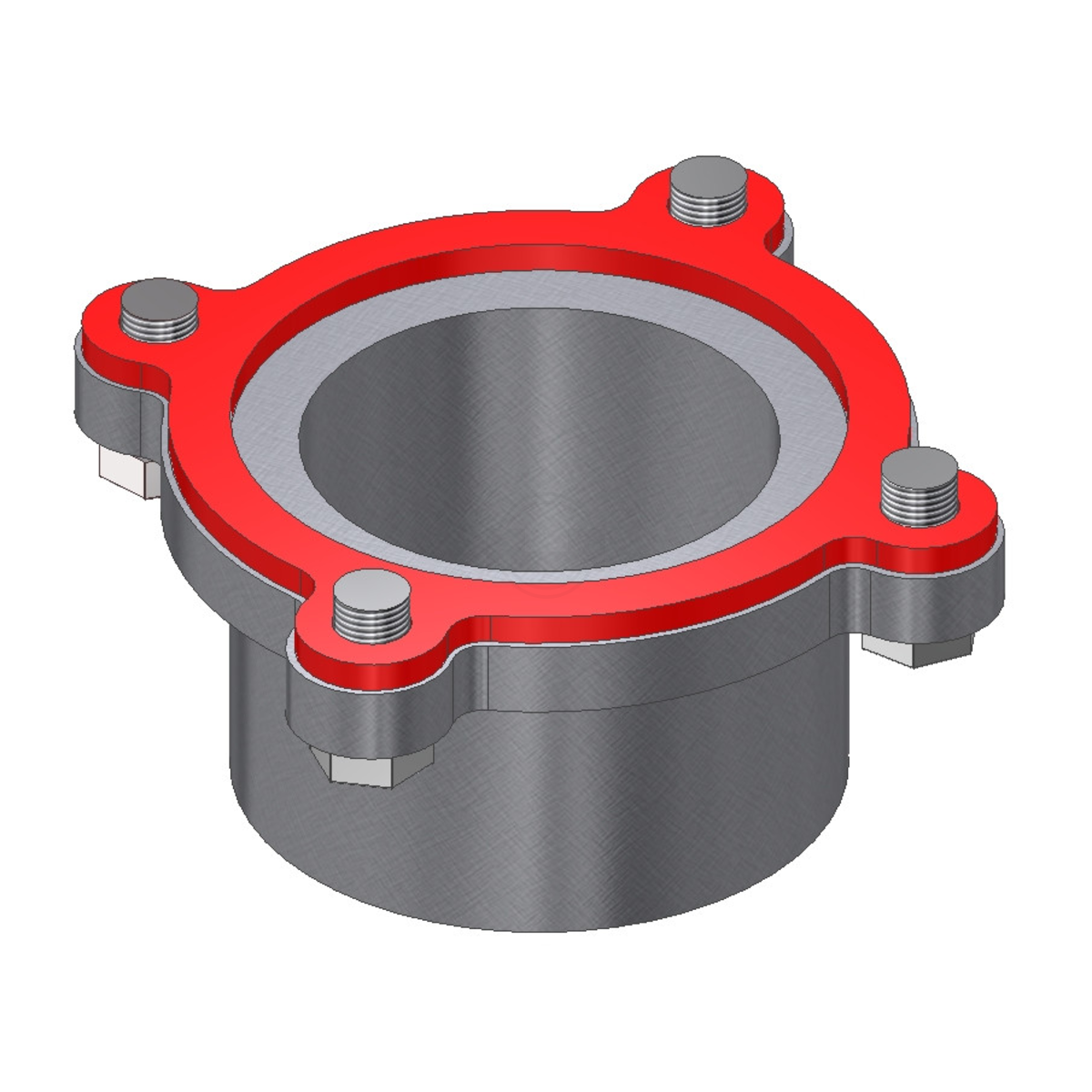

Flat Gasket
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
static sealing for specific applications
Materials
elastomers, fabric-based laminate, metal, plastics
Technical values
Materials
Pressure
up to 50 MPa
Temperature
-60°C / +200°C (material dependent)
Speed
-
Pressure
up to 50 MPa
Temperature
-200°C / +500°C (material dependent)
Speed
-
Pressure
up to 50 MPa
Temperature
-200°C / +300°C (material dependent)
Speed
-
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
