Header Back-up ring

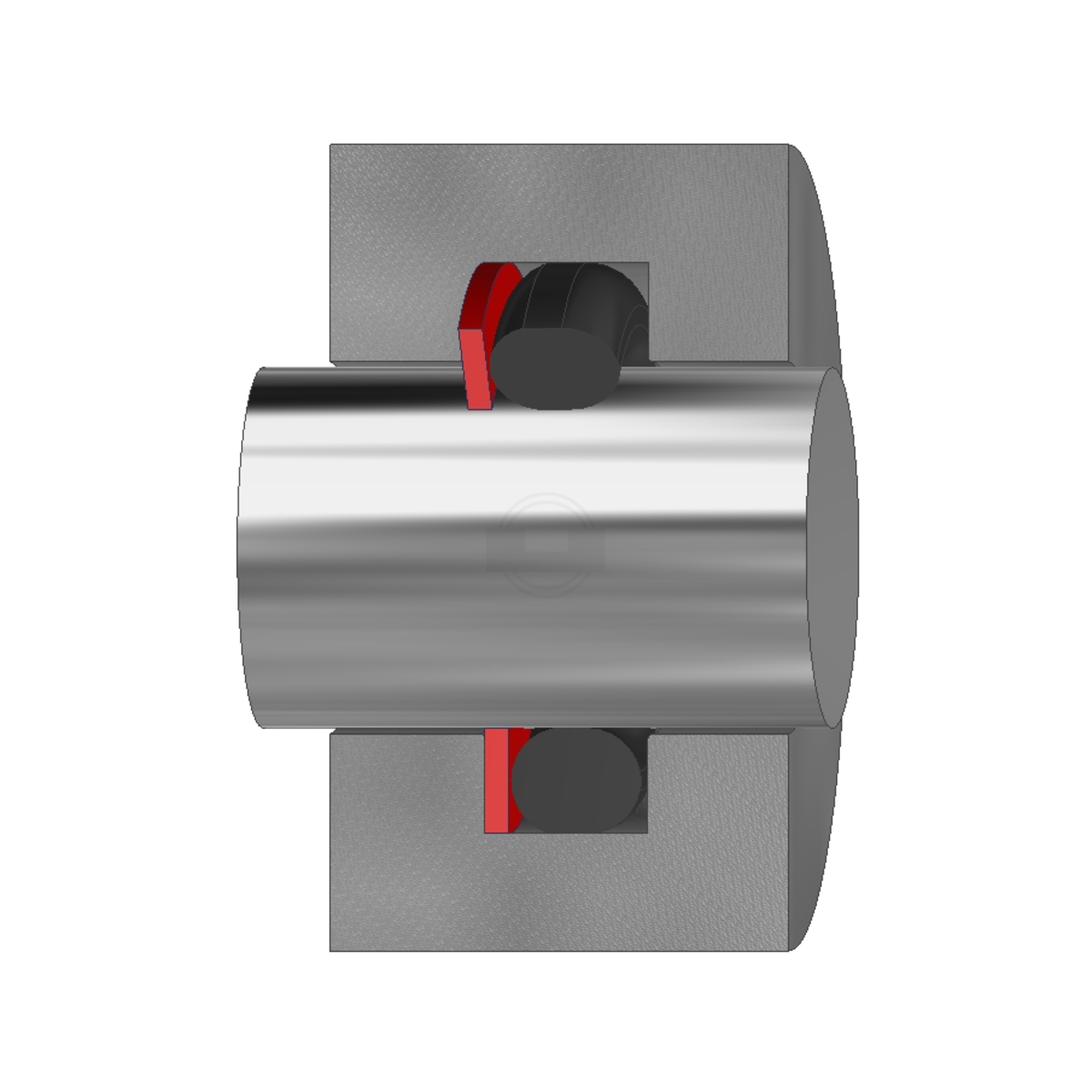

Static Seals Back-up Ring BU – unslotted

The Back-up Ring BU has a closed rectangular profile and because of its accessibility, it is particularly suitable for split grooves.

Back-up Rings are exactly adapted to the groove height and are turned with standard PTFE virgin material. The required groove width increases by the width of the Back-up Rings.

Back-up Ring BU – unslotted

Fields of application
single acting
double acting
Main use protective element for elastomeric sealants against gap extrusion
Materials PTFE; PTFE with filling material

Technical values

Materials PTFE
Pressure static up to 250 MPa
linear up to 40 MPa
rotatory up to 15 MPa
Temperature -200°C / +260°C (material dependent)
Speed linear up to 0,5 m/s
rotatory up to 2 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
