Header Rod seal

Dynamic Seals Gleitef

Gleitef is an active double-acting sealing element which consists of a PTFE seal and an O-ring as preload element.

Gleitef SG

PTFE sealing, O-ring as preload element, rod sealing for hydraulic and pneumatic cylinders, valves, presses and machine tools ...
Gleitef SG
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use Standard double acting rod seal for hydraulic and pneumatic cylinders
Materials Elastomers, metal; PTFE; PTFE with filling material
Technical values
Materials:
Pressure: bis 40 MPa
Temperature: -30°C / +80°C (werkstoffabhängig)
Speed: bis 10 m/s
Pressure: bis 40 MPa
Temperature: -20°C / +200°C (werkstoffabhängig)
Speed: bis 10 m/s
Product details

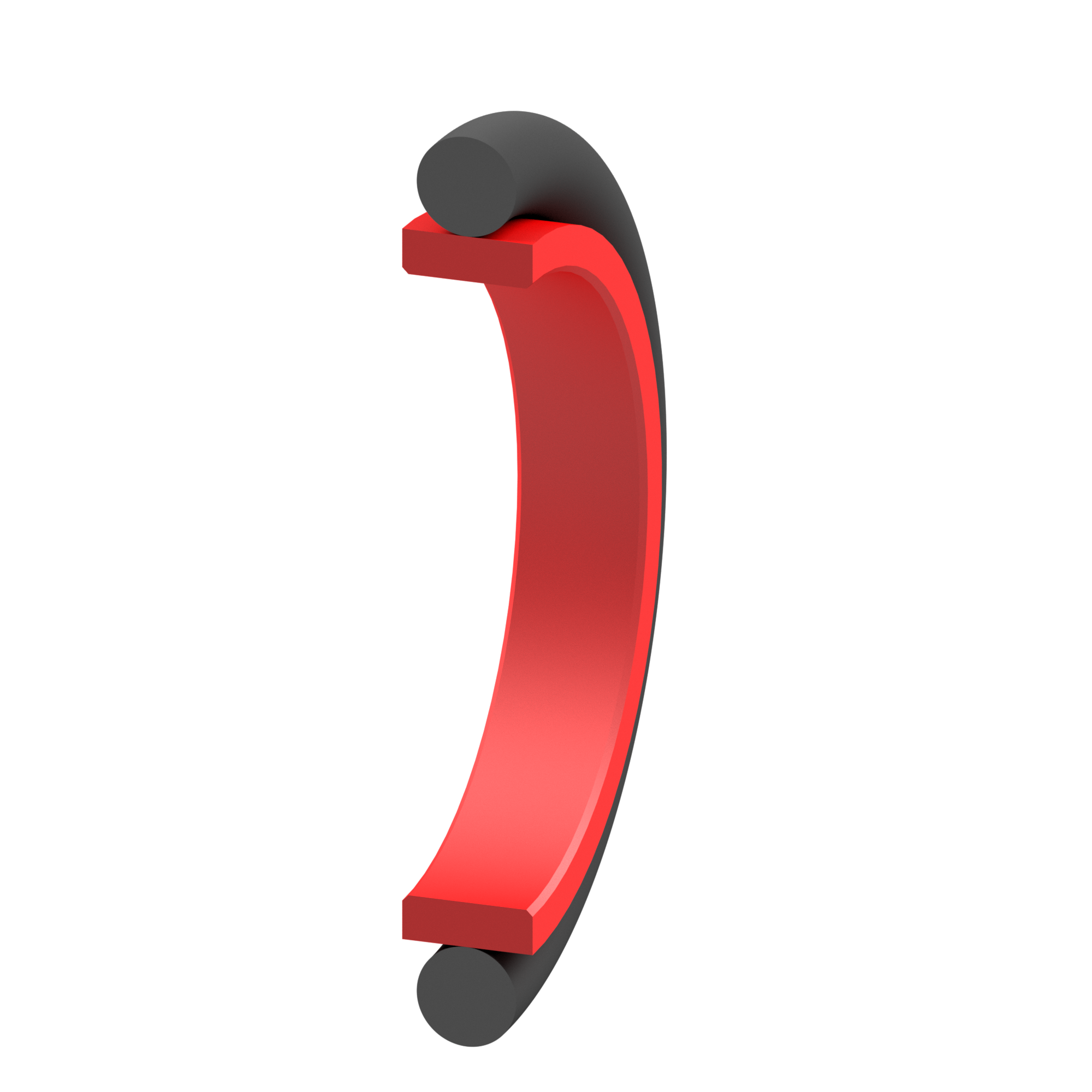

Gleitef SF

PTFE sealing, O-ring as preload element, rod seal for hydraulic and pneumatic cylinders, valves, presses and machine tools, small groove design...
Gleitef SF
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use Double acting rod seal for hydraulic and pneumatic cylinders
Materials Elastomers, PTFE, PTFE with filling material
Technical values
Materials:
Pressure: bis 25 MPa
Temperature: -30°C / +80°C (werkstoffabhängig)
Speed: bis 10 m/s
Pressure: bis 25 MPa
Temperature: -20°C / +200°C (werkstoffabhängig)
Speed: bis 10 m/s
Product details

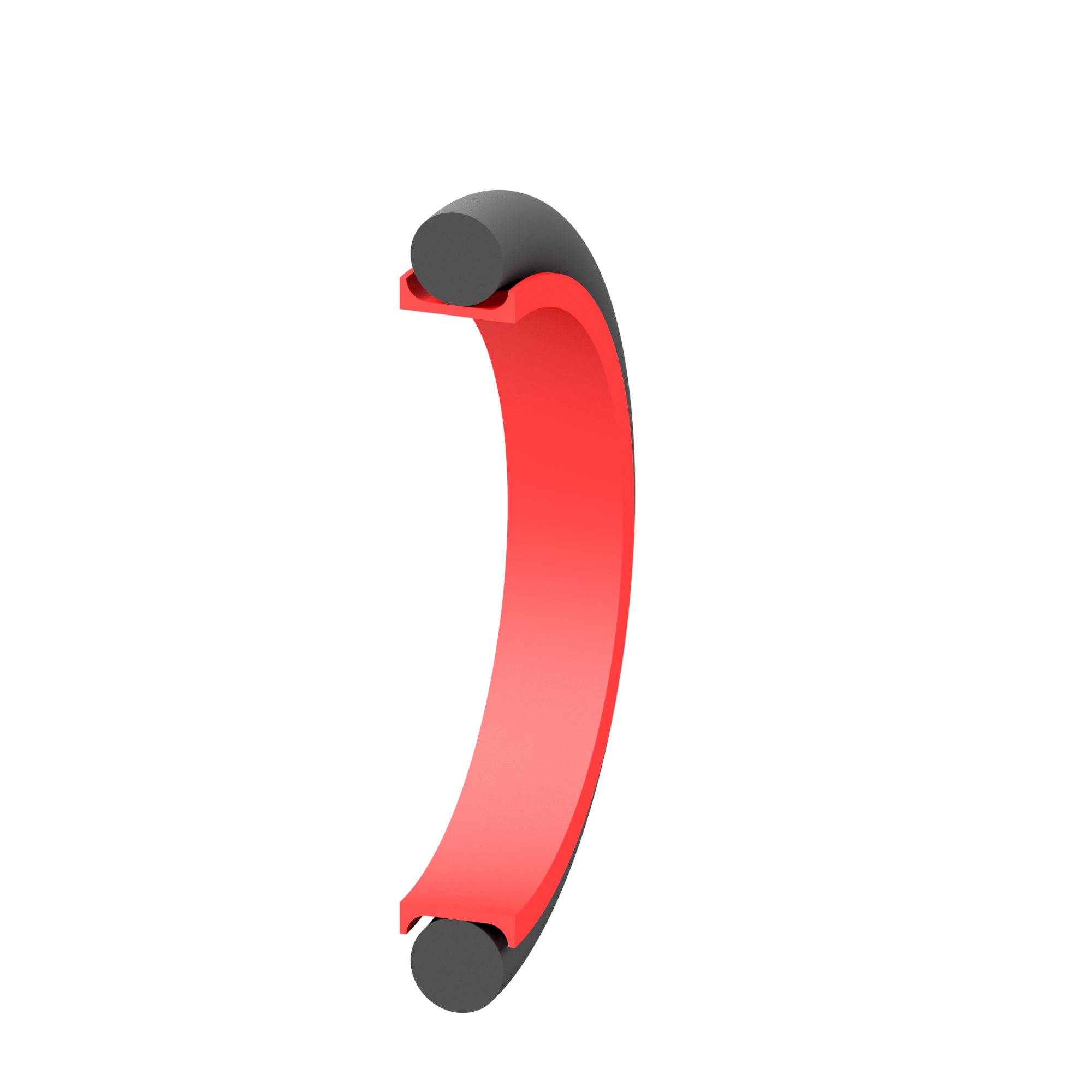

Gleitef SD

PTFE sealing, O-ring as preload element, rod seal, space-saving design...
Gleitef SD
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use Double acting rod seal for O-ring groove designs
Materials Elastomers, PTFE, PTFE with filling material
Technical values
Materials:
Pressure: bis 25 MPa
Temperature: -30°C / +80°C (werkstoffabhängig)
Speed: bis 10 m/s
Pressure: bis 25 MPa
Temperature: -20°C / +200°C (werkstoffabhängig)
Speed: bis 10 m/s
Product details
