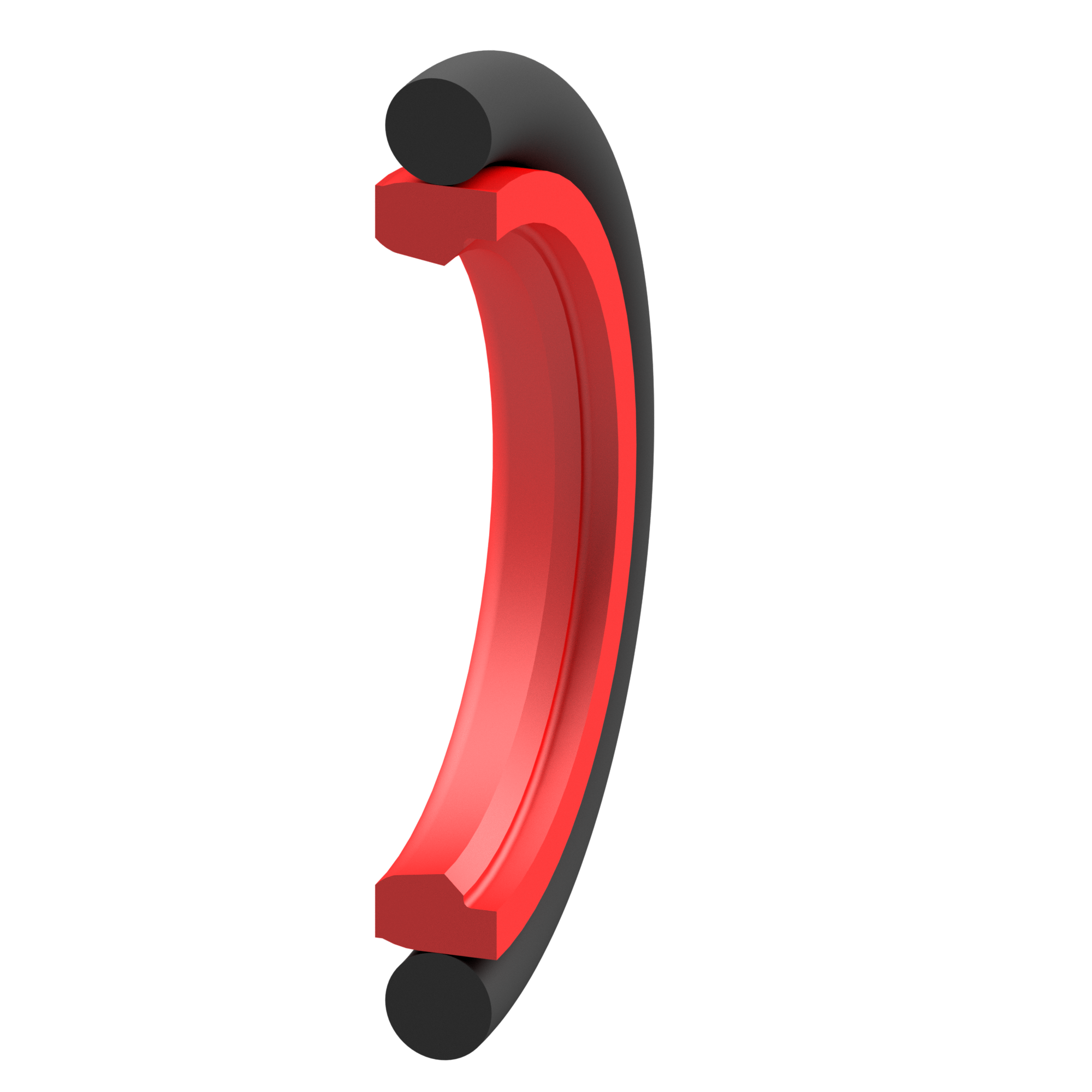

Stuftef SS
PTFE sealing, O-ring as preload element, rod seal, suitable for tandem arrangement ...
Applications
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
standard single acting hydraulic sealing
Materials
elastomers, PTFE, PTFE with filling material
Technical values
Product details
Materials:
Pressure: up to 40 MPa
Temperature: -30°C / +80°C (material dependent)
Speed: up to 10 m/s
Pressure: up to 40 MPa
Temperature: -20°C / +200°C (material dependent)
Speed: up to 10 m/s

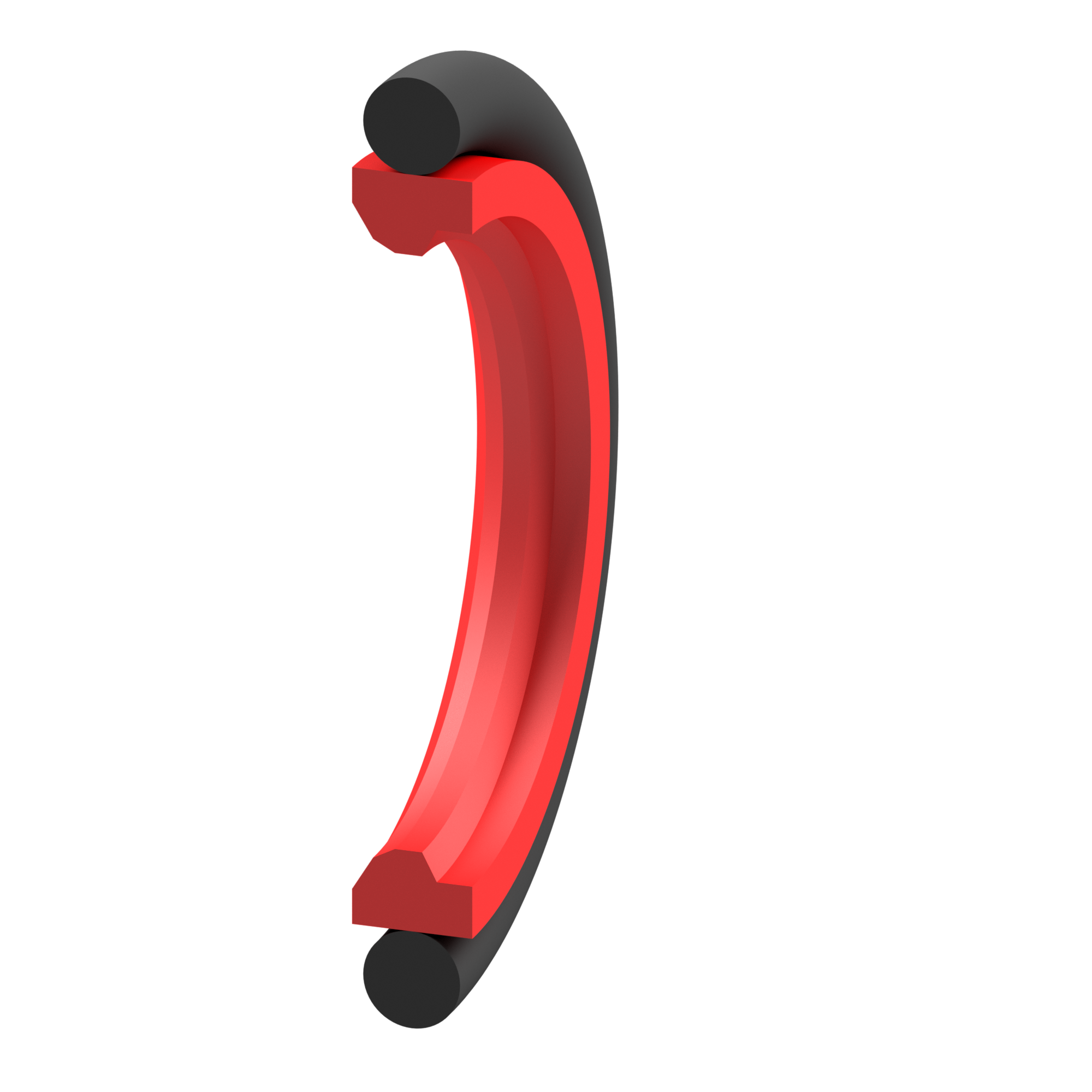

Stuftef SR
Polyurethane (TPU) sealing, O-ring as preload element, rod seal, excellent abrasion, suitable for tandem arrangement ...
Applications
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
single acting secondary seal for the hydraulics
Materials
elastomers, polyurethane
Technical values
Product details
Materials:
Pressure: up to 25 MPa
Temperature: -30°C / +80°C (material dependent)
Speed: up to 0,5 m/s
Pressure: up to 25 MPa
Temperature: -20°C / +200°C (material dependent) - TPU max. +100°C
Speed: up to 0,5 m/s
