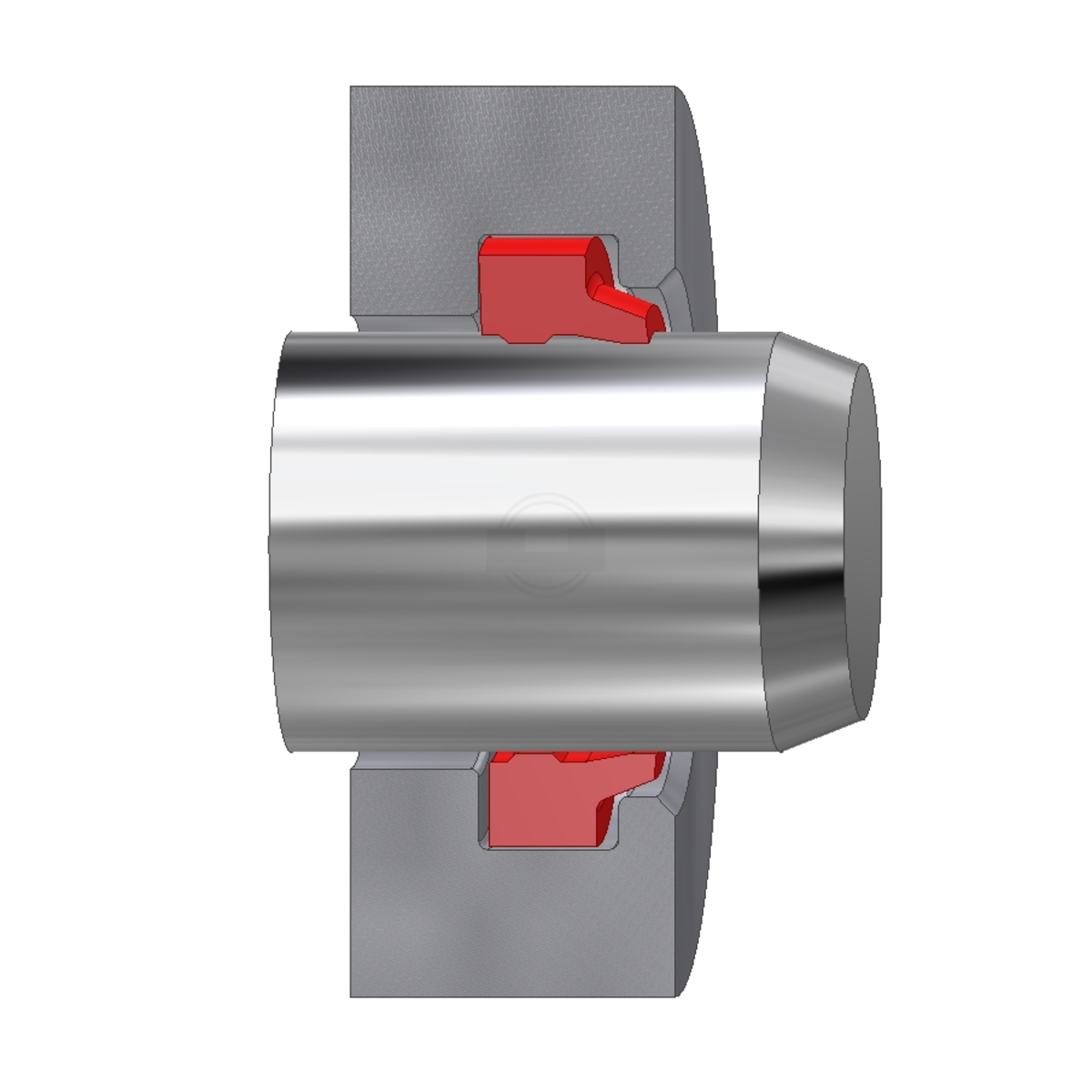

The Scraper A6 is a one-piece scraper and is available in NBR, FKM or polyurethane (TPU). Standard sizes have additional studs on the inner diameter to prevent tilting in the groove. The Scraper A6 in NBR is suitable for hydraulic and pneumatic applications, FKM is particularly suitable for applications where a higher chemical resistance is required.
The A6 in TPU is for mobile hydraulics with heavy dirt or for applications particularly for wear resistance when needed. Standard sizes have additional studs on the inner diameter to safeguard the function. The Scraper A6 has a material hardness of 90 to 95 Shore A.
Scraper A6
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
applications for hydraulic and pneumatic cylinders
Materials
elastomers, polyurethane
Technical values
Materials
Pressure
-
Temperature
-40°C / +100 °C (material dependent)
Speed
up to 1 m/s
Pressure
-
Temperature
-40°C / +100°C (material dependent)
Speed
up to 1 m/s
Pressure
-
Temperature
-20°C / +200°C (material dependent)
Speed
up to 1 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
