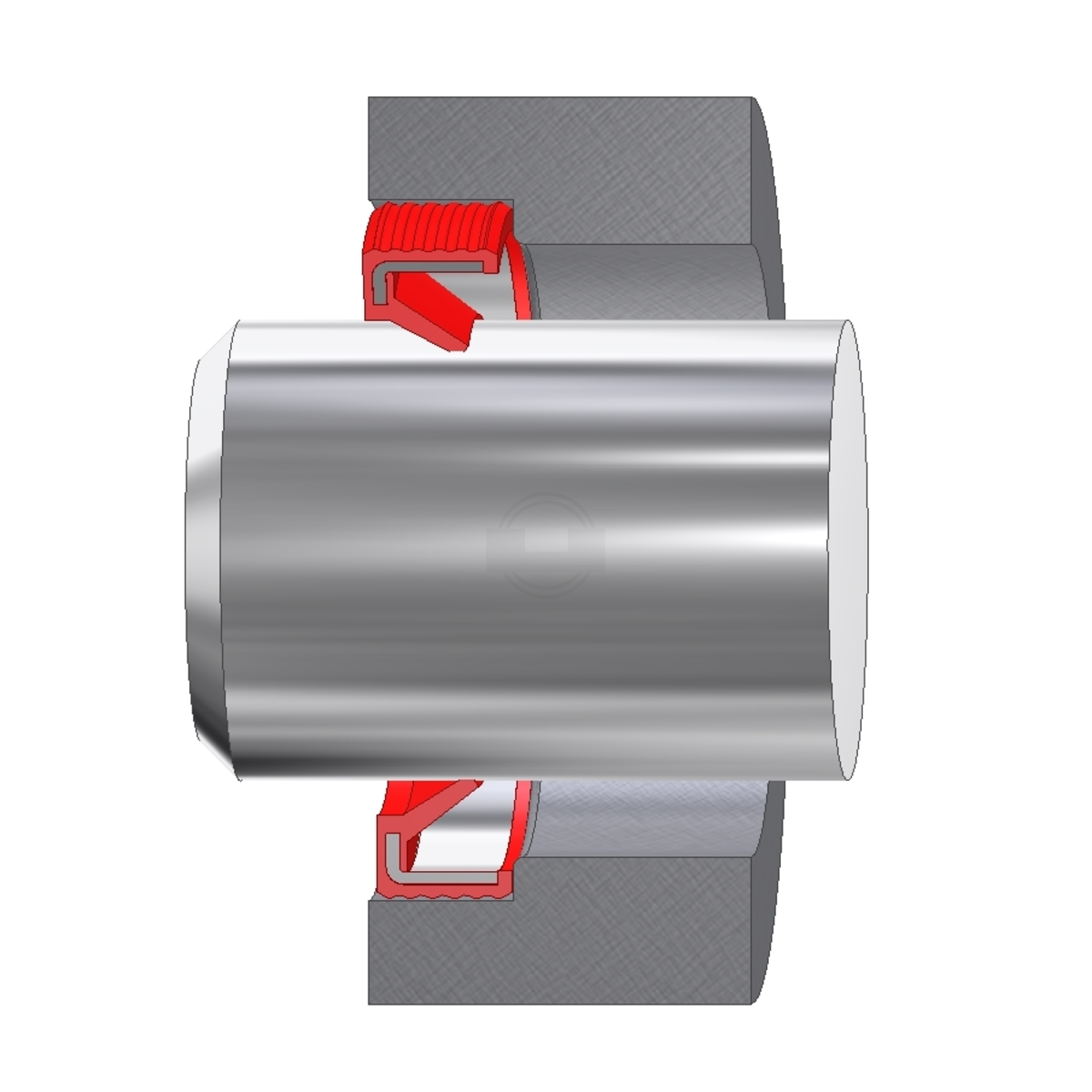

The Radial Oil Seal Type RM is a type of rotary shaft seal with a elastomeric outer diameter similar to the RG type, with a waved design for installation ease and improved static tightness in the groove. This design is without an inserted tension spring. As a result, low friction is ensured on the sealing lip.
It is suitable for rotating shafts in housings with applications which have no pressure. Standard elastomer materials are NBR and FKM. Further materials are available upon demand.
Oil Seal Type RM
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
unpressurized sealing for rotating shafts
Materials
elastomers, metal
Technical values
Materials
Pressure
-
Temperature
-30°C / +100°C (material dependent)
Speed
depending on material and diameter
Pressure
-
Temperature
-20°C / +200°C (material dependent)
Speed
depending on material and diameter
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
