Header Sealing cap

Rotary Seals Sealing Cap CV

Sealing Caps ensure safe sealing of shaft or axle housing bores and are frequently used for mechanical engineering. These are basicly made of metal caps with a vulcanized rubber coating.

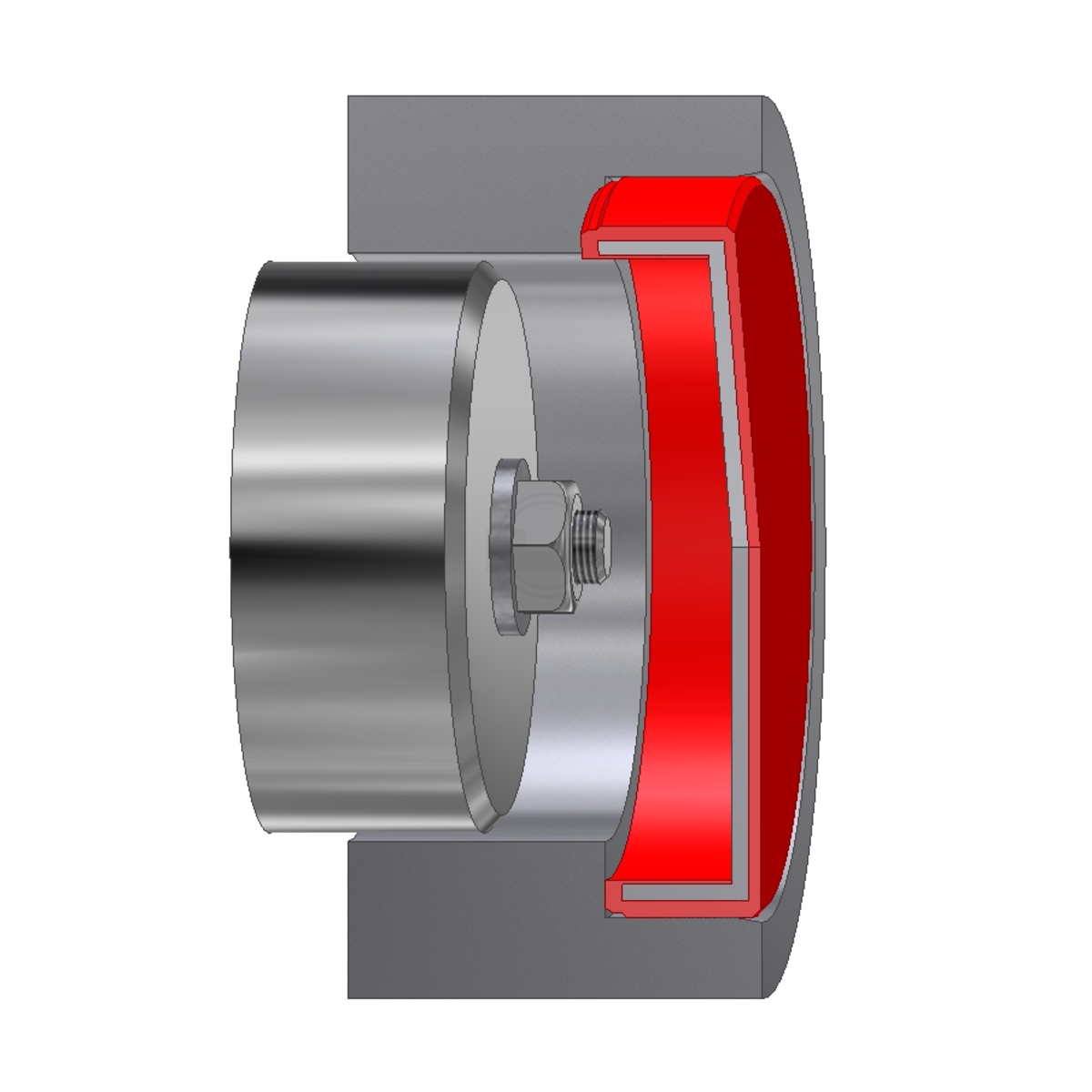

The Sealing Cap design CV has a smooth elastomeric outer casing, that ensures a secure sealing in the bore. The metal cap is manufactered of carbon steel. Standard elastomer materials are NBR and FKM, other materials are available upon demand.

Sealing Cap CV

Fields of application
single acting
double acting
Main use Sealing of housing bores
Materials elastomers; metal

Technical values

Pressure bis 0,05 MPa
Temperature -30°C / +100°C (werkstoffabhängig)
Speed -
Pressure bis 0,05 MPa
Temperature -20°C / +200°C (werkstoffabhängig)
Speed -
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
