The UZ bonded seal consist of a metallic ring with a molded, trapezoidal seal made of elastomer and with a centering embossment for a safe automatic assembly.

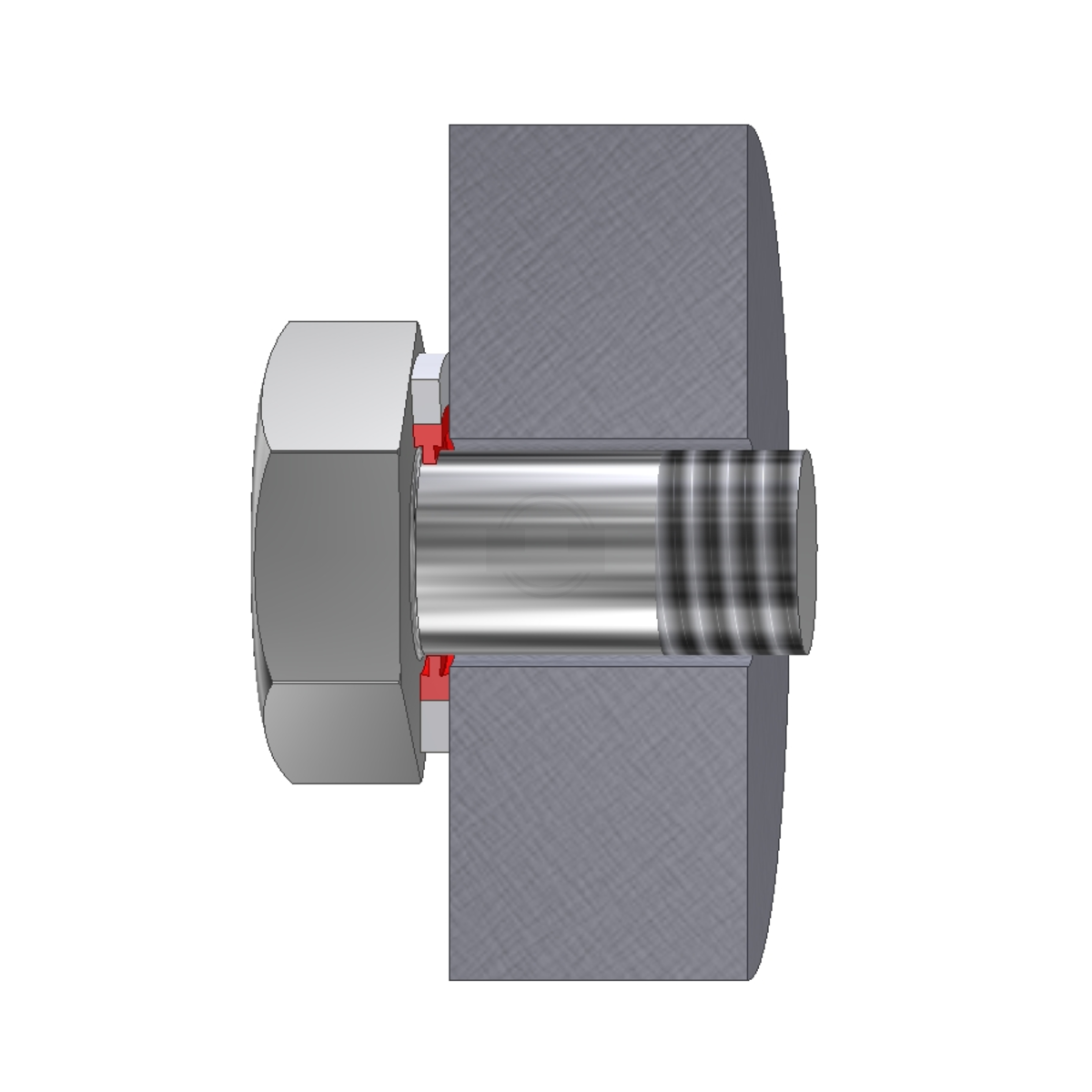

By tightening the screw, the elastic sealing lip gets pressed between the two flat surfaces. The compression of elastomer is limited to the strength of the metal ring.
As soon as pressure applies, the sealing effect is additionally increased. In addition to the standard elastomers, such as NBR, EPDM and FKM, different steel qualities are available such as standard steel (1.0330 galvanised) and stainless steel (1.4301).
U-ring Type UZ
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
sealant for connection elements
Materials
elastomers, metal
Technical values
Materials
Pressure
up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
Temperature
-30°C / +80°C (material dependent)
Speed
-
Pressure
up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
Temperature
-20°C / +200°C (material dependent)
Speed
-
Pressure
up to 100 MPa (installed into a countersink)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
up to 40 MPa (installed into a countersink
at < Ø40mm)
up to 25 MPa (installed into a countersink
at > Ø40mm)
Temperature
-40°C / 130°C (material dependent)
Speed
-
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
