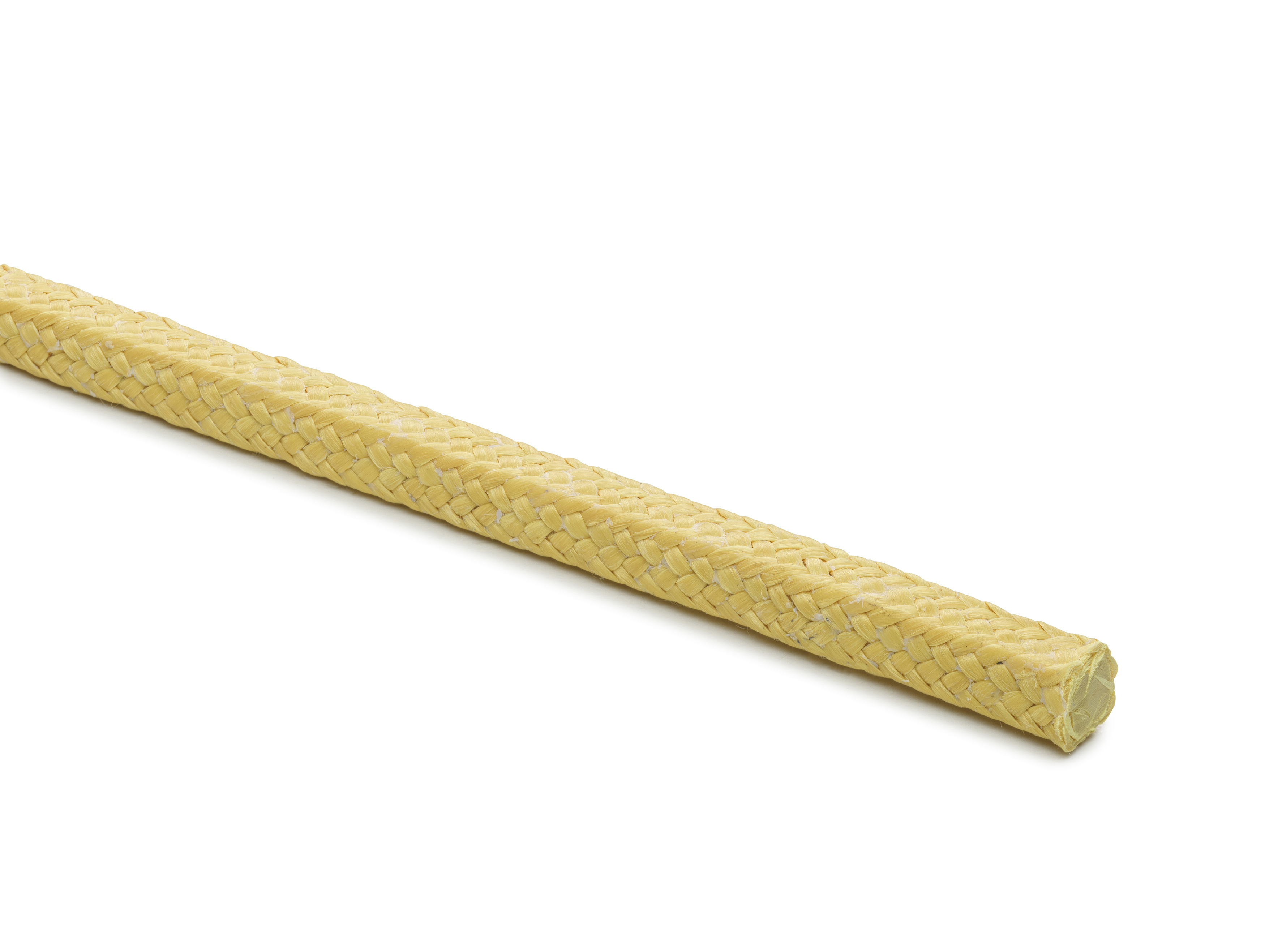

ULMAN T4902 is braided from aramid fi lament yarn and impregnated with PTFE. The base material – aramid fibre – is a synthetic fibre with very high strength.
The packing shows only minimal wear even under very high pressure.
Application
The packing is suitable for sealing in numerous chemically and abrasive media as well as in water and steam up to 280 °C. Thanks to the high strength of the aramid
fibre, it can also be used in high-pressure applications and under demanding operating conditions. The PTFE impregnation allows its use in rotary pumps, with the main fi eld of application being piston pumps. In particular, ULMAN T4902 has proven to provide significant service life extensions when used with abrasive media.
Due to the high yarn strength, the use of shaft sleeves is recommended.
The packing shows only minimal wear even under very high pressure.
Application
The packing is suitable for sealing in numerous chemically and abrasive media as well as in water and steam up to 280 °C. Thanks to the high strength of the aramid
fibre, it can also be used in high-pressure applications and under demanding operating conditions. The PTFE impregnation allows its use in rotary pumps, with the main fi eld of application being piston pumps. In particular, ULMAN T4902 has proven to provide significant service life extensions when used with abrasive media.
Due to the high yarn strength, the use of shaft sleeves is recommended.
Aramid-Packing with PTFE Impregnation - T4902
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
Sealing in numerous chemically and abrasive media as well as in water and steam up to 280 °C.
Materials
Aramid Filament Yarn
Technical values
Materials
Aramid Staple Fibre
Pressure
20 dyn. / 150 stat.
Temperature
-100 °C/+ 280 °C
Speed
15 [m/s]
pH value
2 - 12
Delivery Forms 4–25 mm square, other dimensions available on request
Specific density: 1.4 g/cm³ ± 10%
up to 08 mm – 1 kg
up to 12 mm – 2 kg
up to 16 mm – 4 kg
up to 25 mm – 5 kg
Specific density: 1.4 g/cm³ ± 10%
up to 08 mm – 1 kg
up to 12 mm – 2 kg
up to 16 mm – 4 kg
up to 25 mm – 5 kg
