ULMAN T4903 - The base material of this packing, aramid staple fibre, is a synthetic fibre with very high strength. The fibre structure, in combination with the high degree of impregnation with PTFE dispersion, makes the packing particularly suitable for use in abrasive environments. Although the packing absorbs abrasive particles, they cannot damage its structure or impair its performance. Another important advantage is its high resistance to cutting and wear.
Applications
• Chemical industry: acids, alkalis, solvents
• Energy and power plants: steam, condensate, hot and cold water
• Food and pharmaceutical industry
• General plant engineering: oils, greases, ammonia, lime milk
Thanks to its high thermal and chemical stability, ULMAN T4903 can be used universally, even under extreme conditions. It provides a high level of operational safety and ensures a long service life, even under changing process conditions.
Applications
• Chemical industry: acids, alkalis, solvents
• Energy and power plants: steam, condensate, hot and cold water
• Food and pharmaceutical industry
• General plant engineering: oils, greases, ammonia, lime milk
Thanks to its high thermal and chemical stability, ULMAN T4903 can be used universally, even under extreme conditions. It provides a high level of operational safety and ensures a long service life, even under changing process conditions.

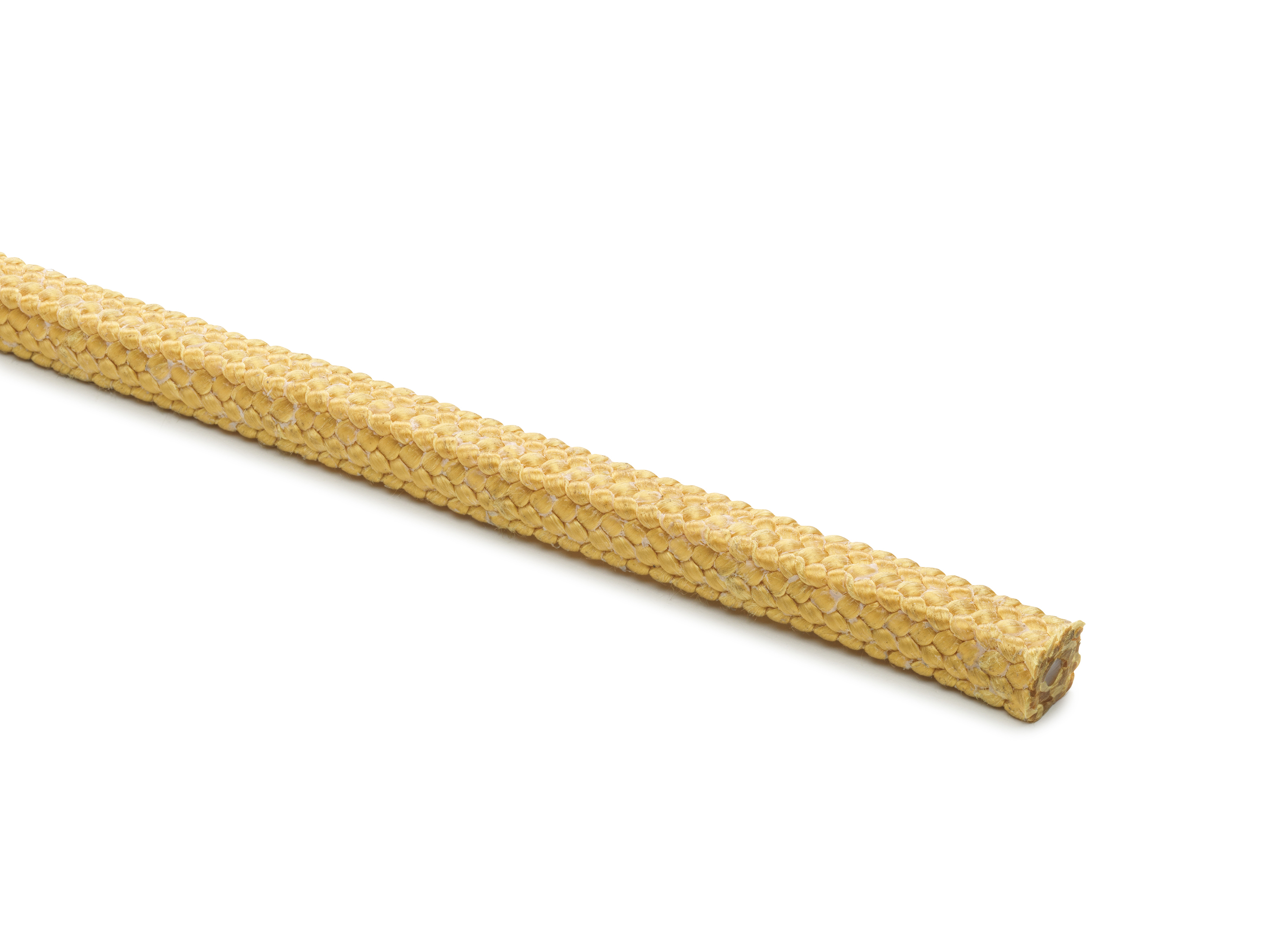

Polyimide-Packing with PTFE and Lubricant - T4903
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
Aramid staple fibre, is a synthetic fibre with very high strength. The fibre structure, in combination with the high degree of impregnation with PTFE dispersion, makes the packing particularly suitable for use in abrasive environments.
Materials
Polyimide Yarn
Technical values
Materials
Polyimide
Pressure
30 dyn. / 350 stat.
Temperature
-100 °C/+260 °C
Speed
25 [m/s]
pH value
1 - 12
Delivery Forms 4–25 mm square, other dimensions available on request
Specific density: 1.4 g/cm³ ± 10%
up to 08 mm – 1 kg
up to 12 mm – 2 kg
up to 16 mm – 4 kg
up to 25 mm – 5 kg
Specific density: 1.4 g/cm³ ± 10%
up to 08 mm – 1 kg
up to 12 mm – 2 kg
up to 16 mm – 4 kg
up to 25 mm – 5 kg
