ULMAN T4665 is made from high-quality, braided carbon fibre that has been specially impregnated to ensure optimum sealing performance and a long service life. Carbon fibre is characterised by very high mechanical strength, excellent thermal conductivity and outstanding chemical
resistance to a wide range of media. The special impregnation reduces the coefficient of friction, improves the sealing performance
and extends the service life.
Applications
The packing is suitable for sealing pumps and valves handling media such as water, steam, superheated steam, oils, solvents, gases, petrochemical products, and weak acids and alkalis. Preferred areas of application include power generation, the chemical and petrochemical industries, the paper and pulp industry,
and plant and mechanical engineering.
resistance to a wide range of media. The special impregnation reduces the coefficient of friction, improves the sealing performance
and extends the service life.
Applications
The packing is suitable for sealing pumps and valves handling media such as water, steam, superheated steam, oils, solvents, gases, petrochemical products, and weak acids and alkalis. Preferred areas of application include power generation, the chemical and petrochemical industries, the paper and pulp industry,
and plant and mechanical engineering.

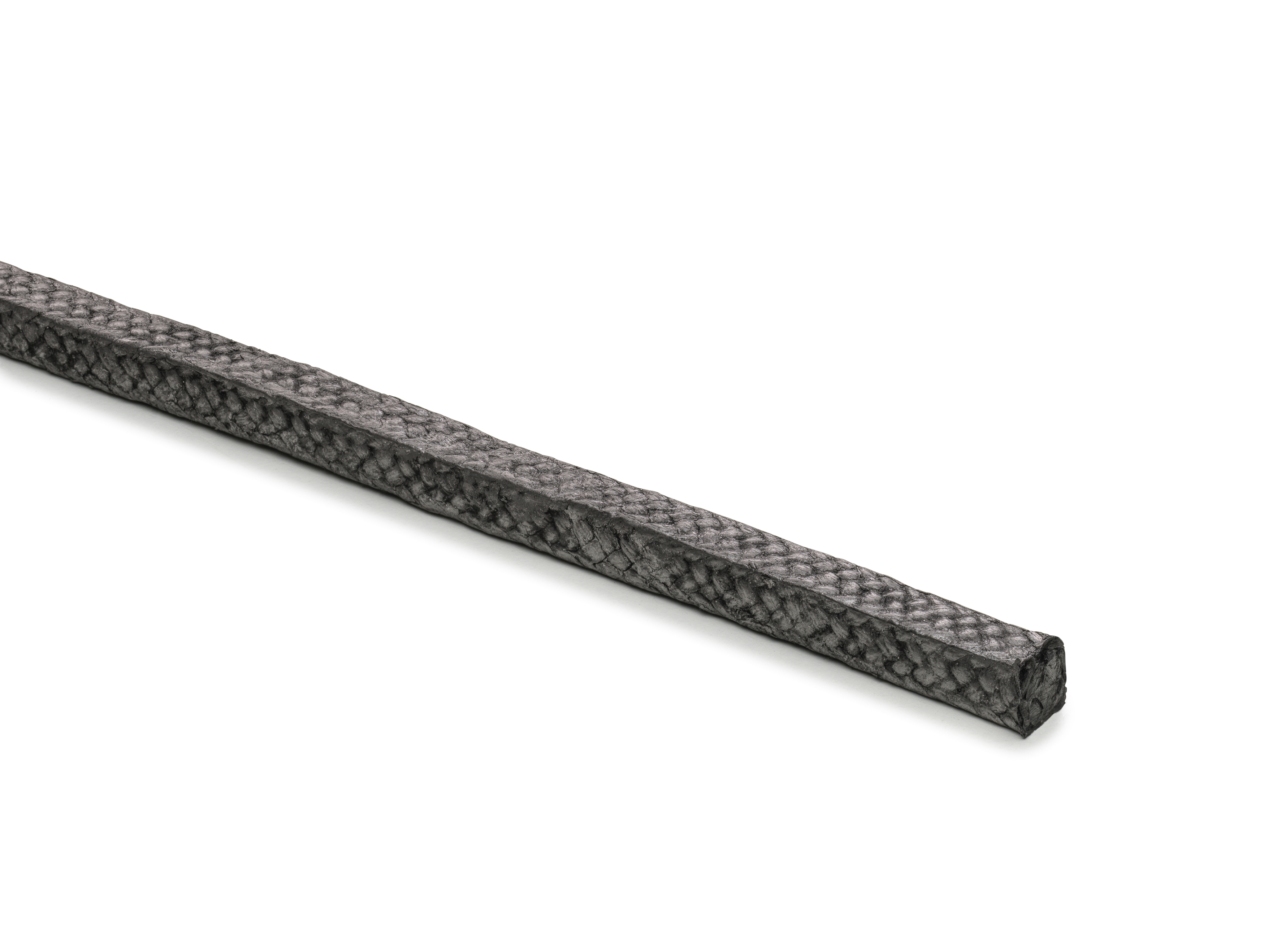

Carbon Fibre Packing with Graphite Impregnation - T4665
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
The product is used in pumps and valves within the power generation, chemical and petrochemical, paper and pulp industries, as well as in plant and mechanical engineering.
Materials
Carbon Fibre
Technical values
Materials
Carbon Fibre
Pressure
30 dyn. / 200 stat.
Temperature
-60 °C/+400 °C
Speed
20 [m/s]
pH value
1 - 14
Delivery Forms 4–25 mm square, other dimensions available on request
Specific density: 1.4 g/cm³ ± 10%
up to 08 mm – 1 kg
up to 12 mm – 2 kg
up to 16 mm – 4 kg
up to 25 mm – 5 kg
Specific density: 1.4 g/cm³ ± 10%
up to 08 mm – 1 kg
up to 12 mm – 2 kg
up to 16 mm – 4 kg
up to 25 mm – 5 kg
