Bead Moulded Diaphragms – Flexible in Tight Spaces

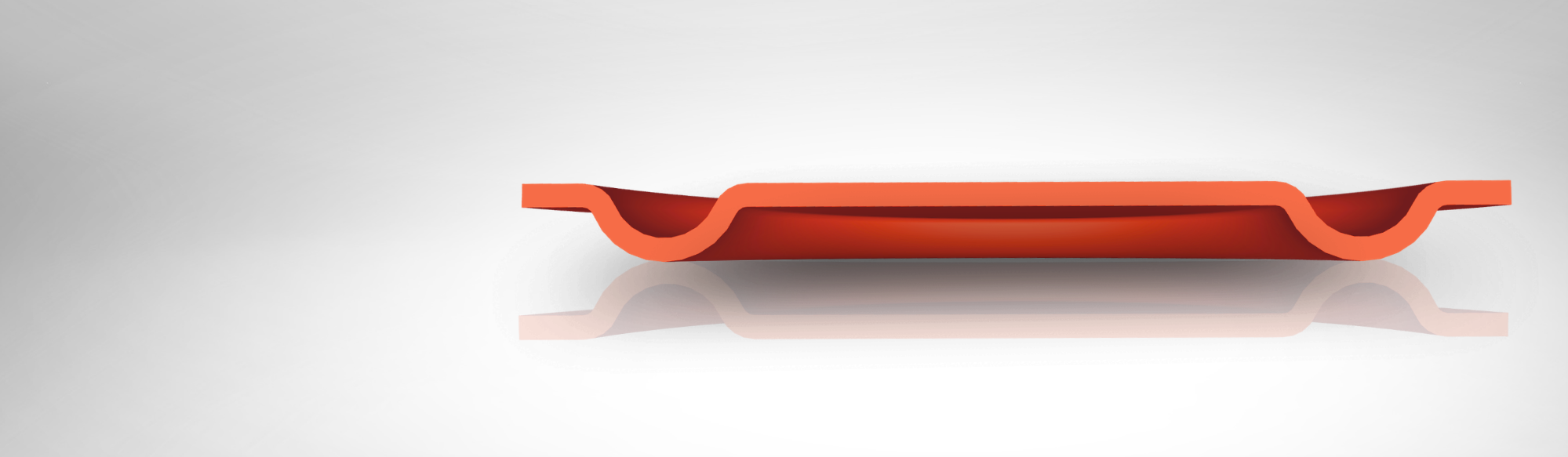

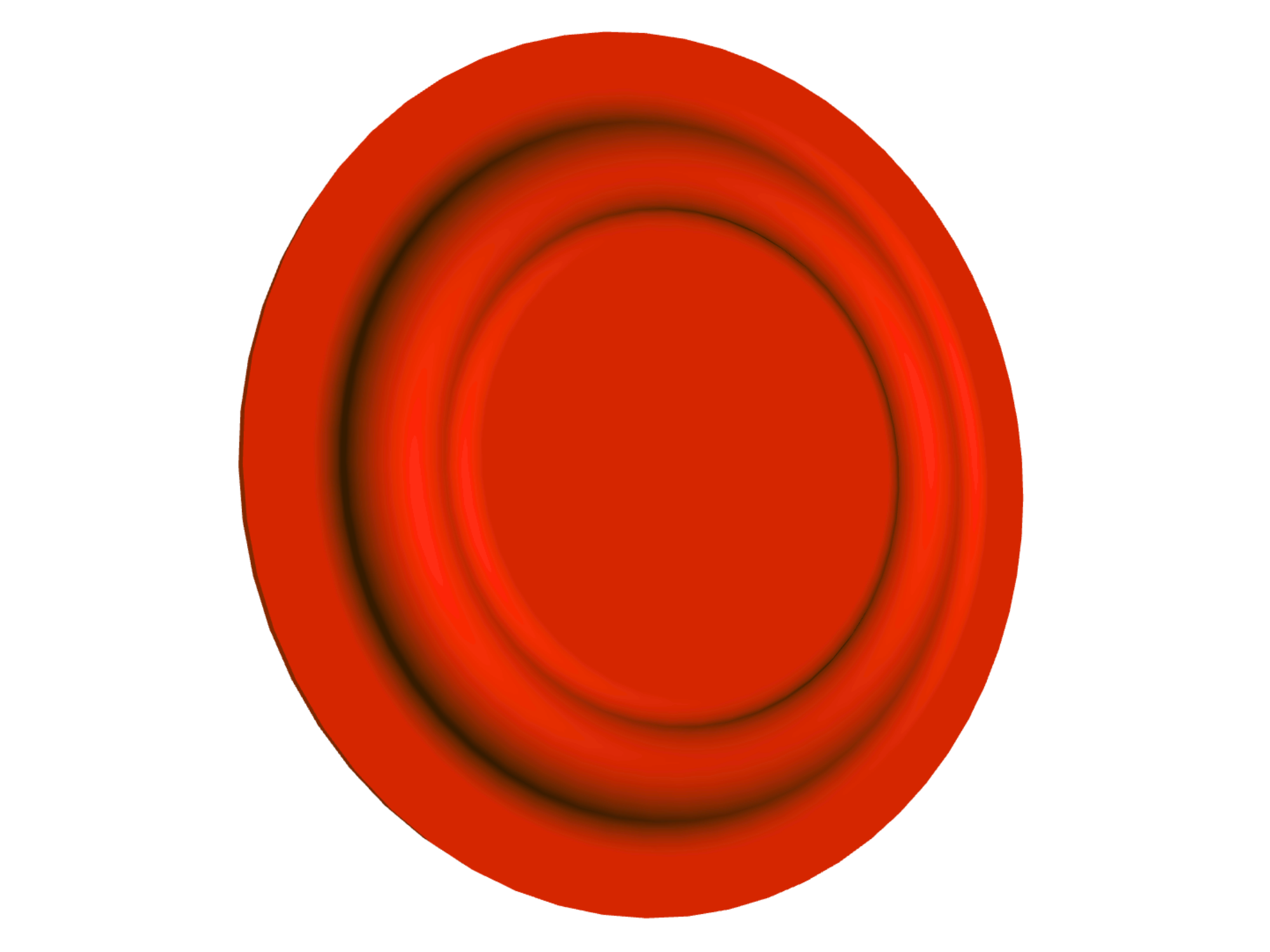

Bead moulded diaphragms feature one or more concentric beads. This special geometry acts as an elastic expansion joint, allowing the diaphragm to accommodate large axial movements while offering minimal resistance.

Thanks to the beads, the diaphragm can accommodate a larger stroke without the material being excessively stretched. This design is therefore particularly well-suited for applications that require high mobility combined with a compact design.

Bead Moulded Diaphragm

Fields of application

static

dynamic

single acting

double acting

Linear

Rotating

oszilating

Main use Anywhere where large axial strokes and movements need to be precisely balanced or controlled with minimal mechanical resistance.

Materials PTFE with filling material, metal

Technical values

Materials

Pressure 0,07 MPa

Temperature -50°C / +80°C (depending on material)

Speed Depending on the application design

Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.

Downloads

Brochure

Downloads

When and where are bead moulded diaphragms used?

Bead moulded diaphragms are used in measurement, control, and process technology, among other fields. Typical applications include, for example:

high-sensitivity gas pressure regulators
measuring instruments
other applications involving large axial movements

What are the advantages of a Bead moulded diaphragms?

Large stroke with low resistance – The beads allow for large axial movements with low contact force.
High flexibility – The elastic geometry ensures reliable diaphragm movement.
Compact design – Large travel ranges can be achieved even in confined spaces.
Compensation for housing tolerances – The elastic beads can compensate for manufacturing tolerances within the housing.
Low stress on the material – The design reduces excessive stretching of the material and can thereby extend its service life.
Very thin designs possible – Beaded diaphragms can also be manufactured with exceptionally thin walls.

Do you need a custom solution? Together, we’ll develop a diaphragm tailored precisely to your requirements.
