Dynamic Seals Guide Ring

Guide Rings have the function of preventing mechanical contact between pistons, bores and rods. Therefore, they have to absorb all transverse forces that occur.

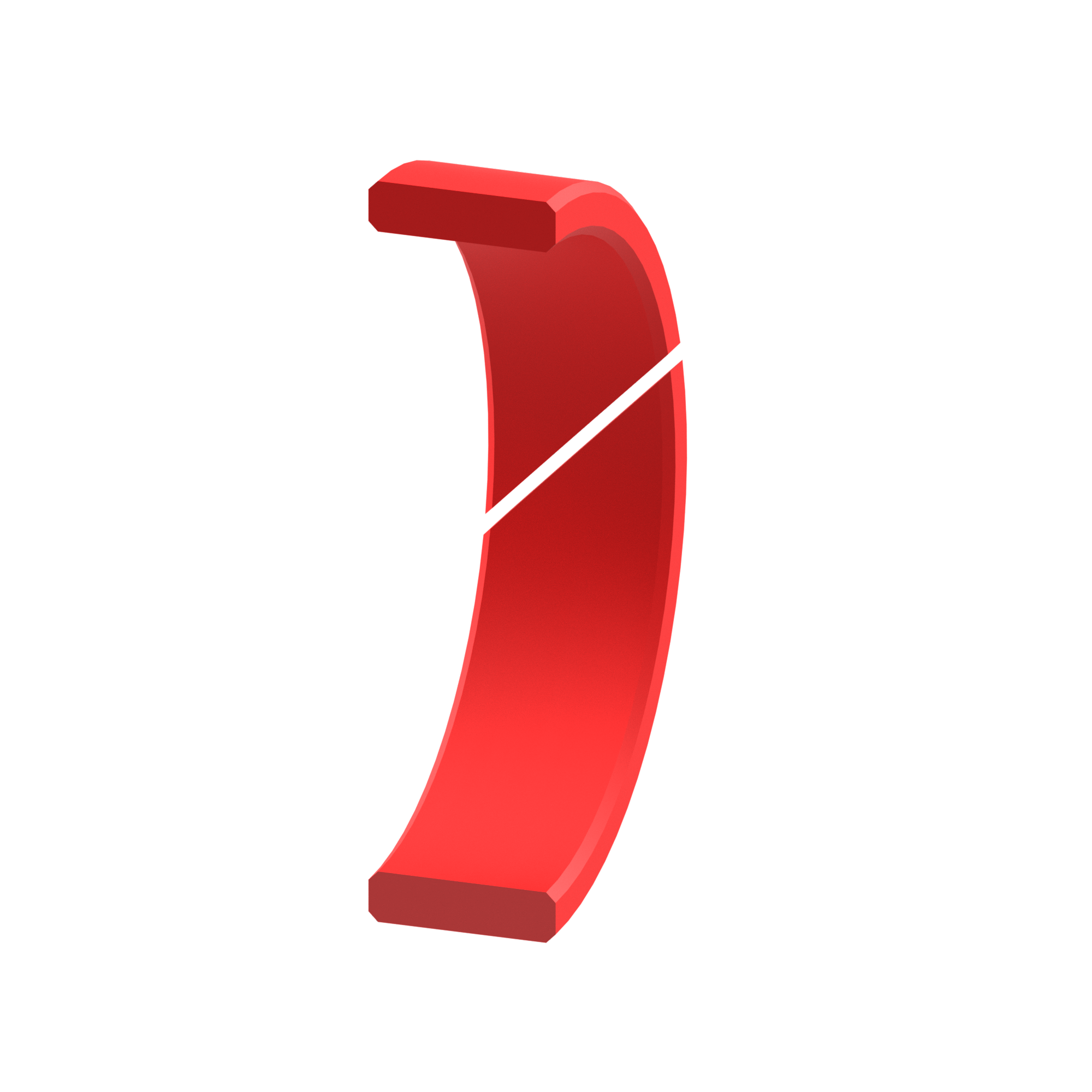

Guide Ring FK

Prevents contact between piston and bore, absorbs cross forces ...
Guide Ring FK
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use Guiding in dynamic applications
Materials Fabric-based laminate, Polymers, PTFE, PTFE with filling material, thermoplast; UHMW-PE
Technical values
Materials:
Temperature: -200°C / +260°C (werkstoffabhängig)
Speed: bis 10 m/s
Temperature: -200°C / +120°C (werkstoffabhängig)
Speed: bis 2 m/s
Temperature: -40°C / +130°C (werkstoffabhängig)
Speed: bis 1 m/s
Product details

Rod Guide Ring FS

Prevents contact between bore and piston, absorbs cross forces ...
Rod Guide Ring FS
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use guiding in dynamic applications
Materials fabric-based laminate, polymers, PTFE, PTFE with filling material, thermoplast, UHMW-PE
Technical values
Materials:
Temperature: -200°C / +260°C (material dependent)
Speed: up to 10 m/s
Temperature: -200°C / +120°C (material dependent)
Speed: up to 2 m/s
Temperature: -40°C / +130°C (material dependent)
Speed: up to 1 m/s
Product details

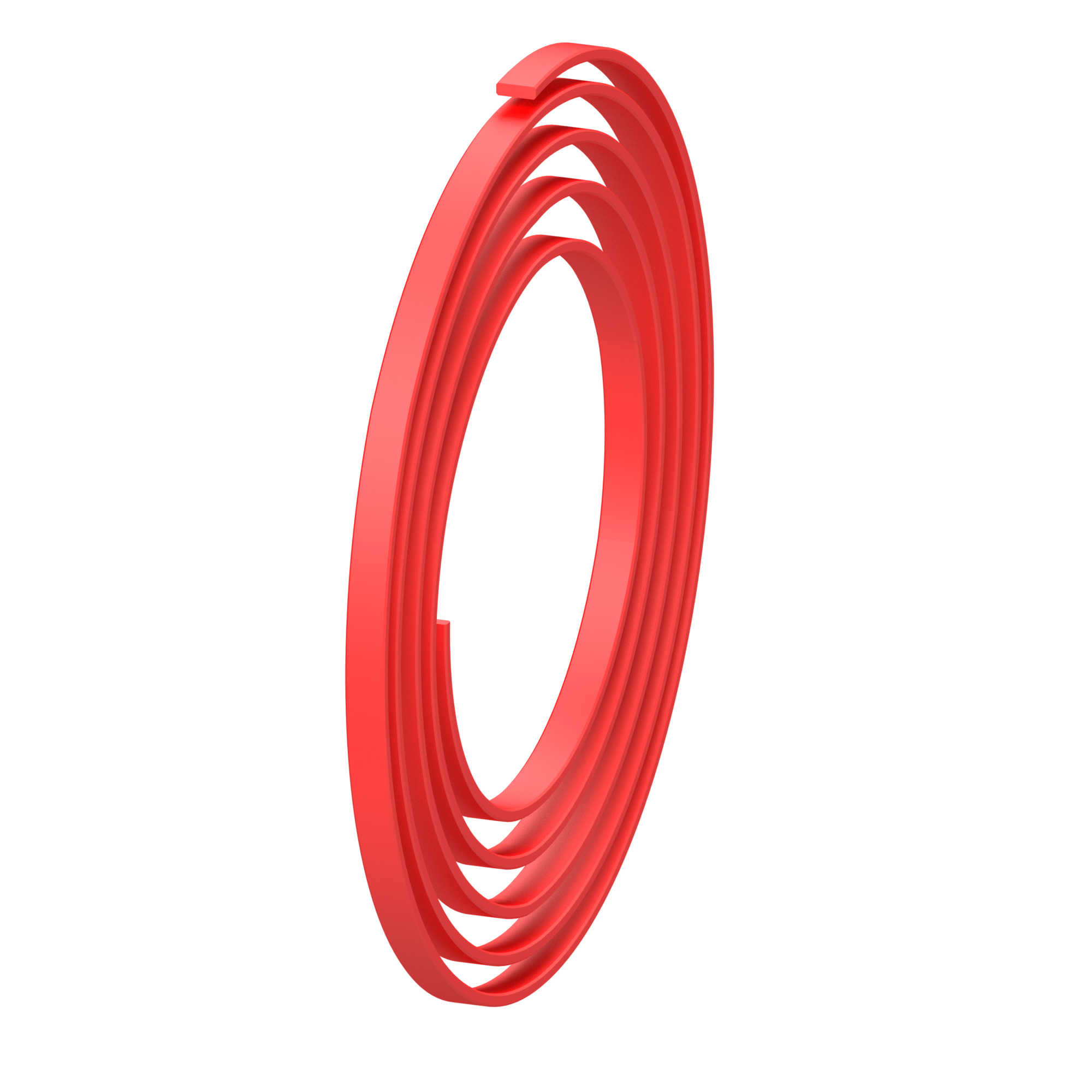

Guide Strips FM

Guide Strips, as piston or rod Guide Rings, prevents contact between piston and bore ...
Guide Strips FM
Applications
static
static
static
dynamic
single acting
single acting
double acting
double acting
Linear
Linear
Rotating
Rotating
oszilating
oszilating
Main use Guiding in dynamic applications
Materials fabric-based laminate, Polymere, PTFE, PTFE with filling material; thermoplast; UHMW-PE
Technical values
Materials:
Temperature: -200°C / +260°C (werkstoffabhängig)
Speed: bis 10 m/s
Temperature: -200°C / +120°C (werkstoffabhängig)
Speed: bis 2 m/s
Temperature: -40°C / +130°C (werkstoffabhängig)
Speed: bis 1 m/s
Product details
