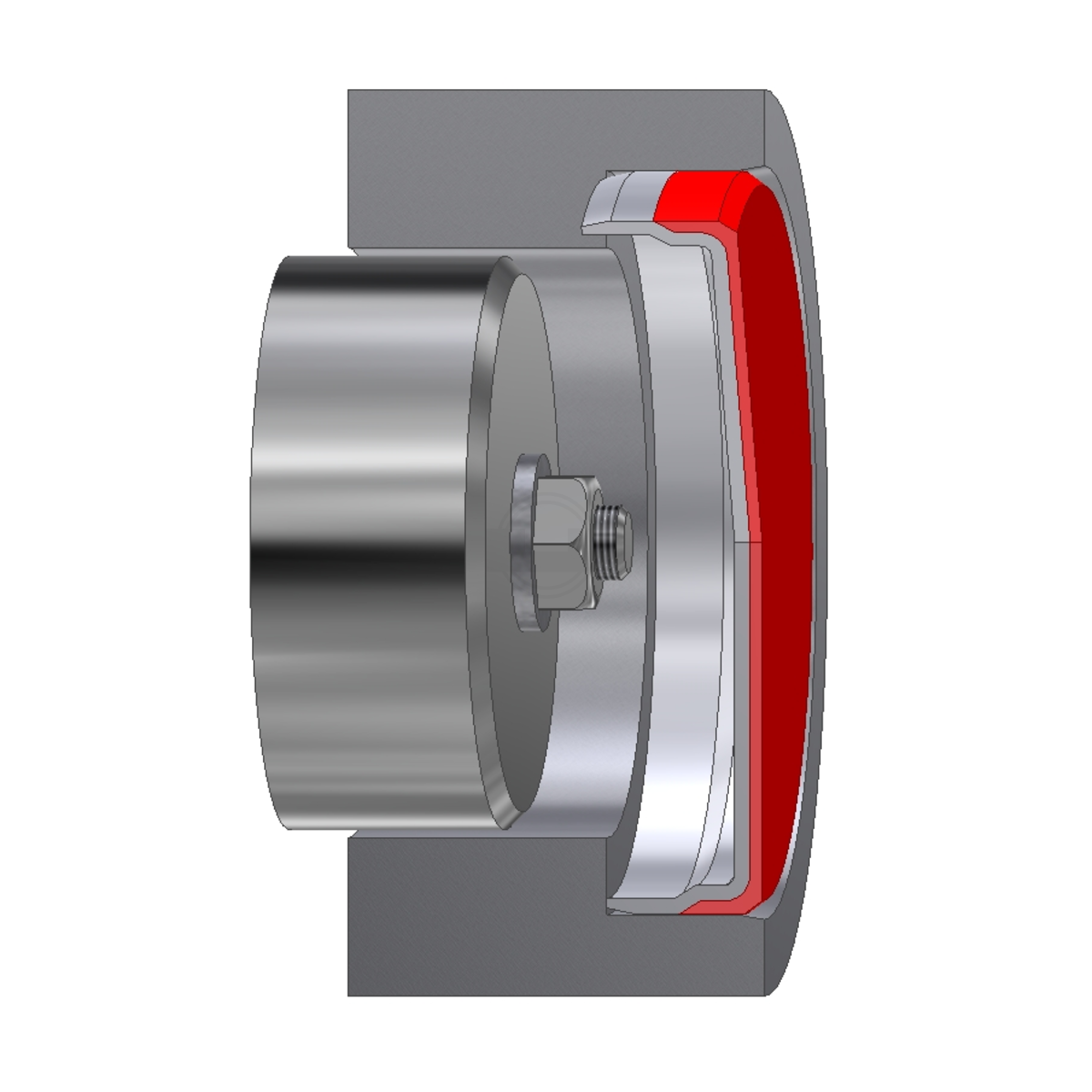

Sealing Caps ensure safe sealing of shaft or axle housing bores and are frequently used for mechanical engineering. These are basicly made of metal cap with a vulcanized elastomeric coating. The Sealing Cap design CT has a partially rubberized outer diameter.
The smooth elastomeric outer diameter ensures a secure sealing of the bore. The metal ring is designed with interference which ensures a firm seat in the bore hole. The metal cap is manufactered of carbon steel. Standard elastomer materials are NBR and FKM, other materials are available upon demand.

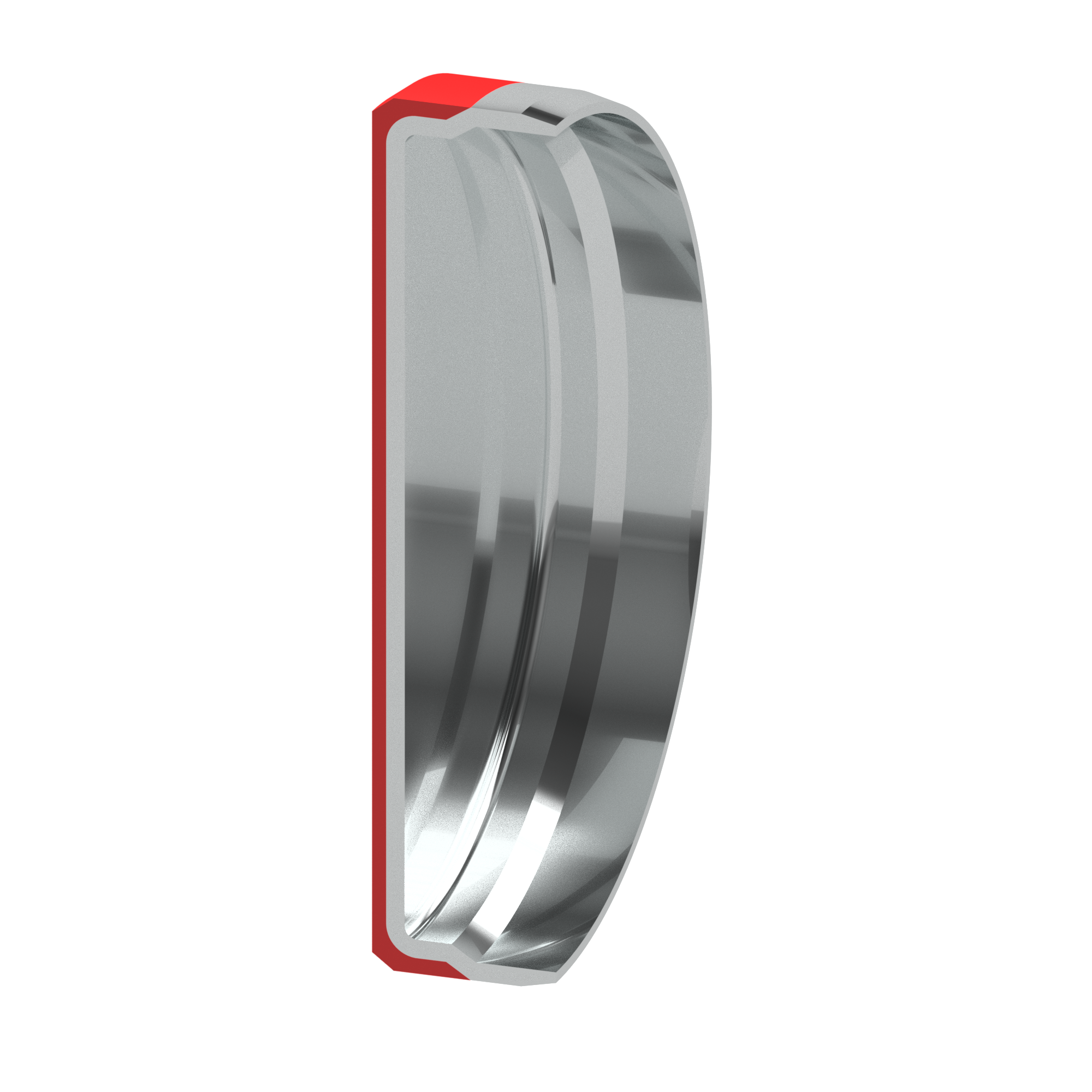

Sealing Cap CT
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
Sealing of housing bores
Materials
elastomers, Metalle
Technical values
Materials
Pressure
bis 0,05 MPa
Temperature
-30°C / +100°C (werkstoffabhängig)
Speed
-
Pressure
bis 0,05 MPa
Temperature
-20°C / +200°C (werkstoffabhängig)
Speed
-
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
