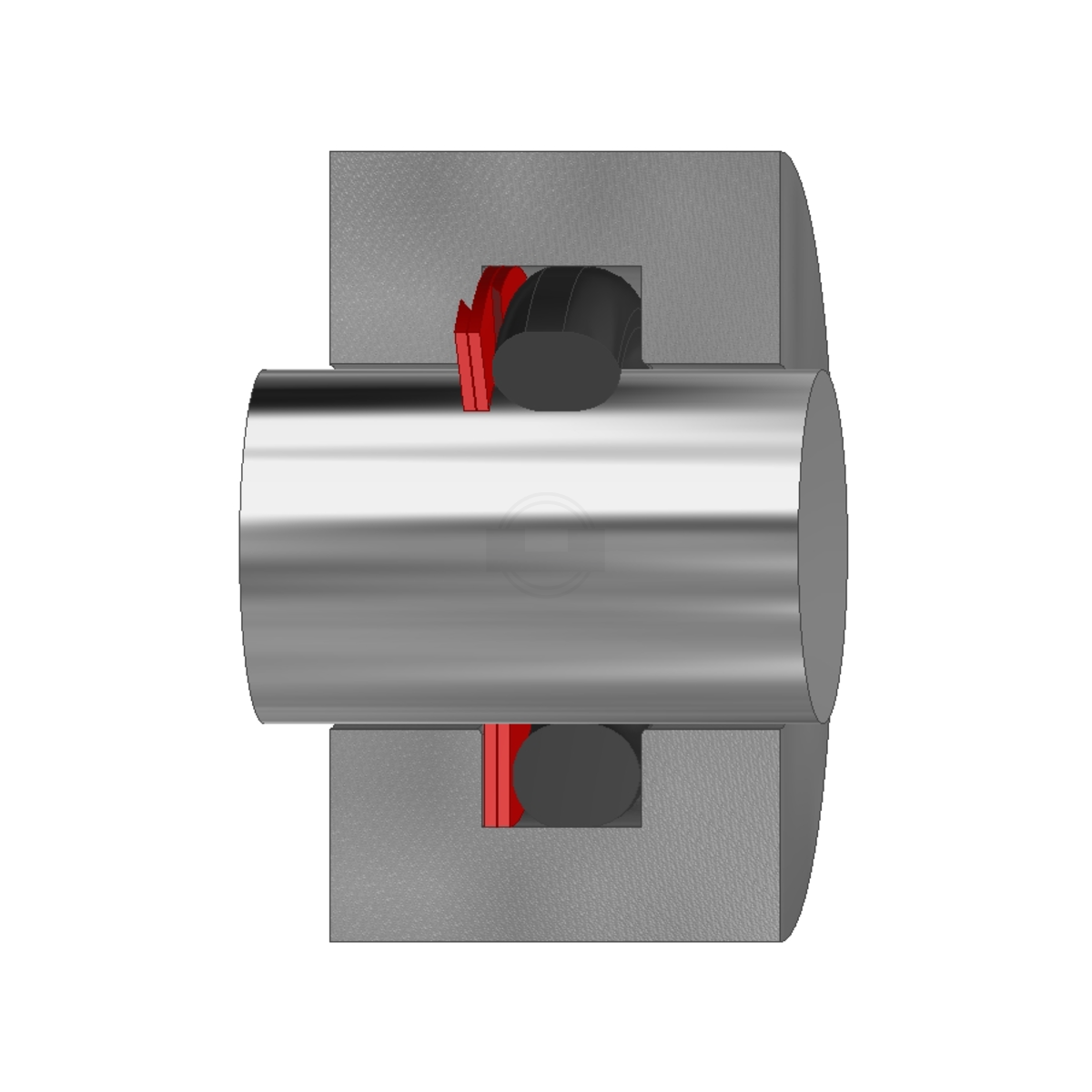

The Back-up Ring BS has a spiral profile and because of its assembly ease, it is particularly suitable for all groove types. At pressurization, the spiral support ring presses against the groove flank.
Back-up Rings are exactly adapted to the groove height and are turned with standard PTFE virgin material. The required groove width increases by the width of the Back-up Rings.
Back-up Rings are exactly adapted to the groove height and are turned with standard PTFE virgin material. The required groove width increases by the width of the Back-up Rings.
Back-up Ring BS - spiral form
Fields of application
static
dynamic
single acting
double acting
Linear
Rotating
oszilating
Main use
protective element for elastomeric sealants against gap extrusion
Materials
PTFE, PTFE with filling material
Technical values
Materials
PTFE
Pressure
static up to 250 MPa
linear up to 40 MPa
rotatoy up to 5 MPa
linear up to 40 MPa
rotatoy up to 5 MPa
Temperature
-200°C / +260°C (material dependent)
Speed
linear up to 0,5 m/s
rotatory up to 2 m/s
rotatory up to 2 m/s
Maximum values temperature, speed and pressure are simultaneously not applicable! The values vary in dependence of material and media. For technical queries please contact our application consultants – we have the right solution for you.
